Led High Mast Luminaire
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67

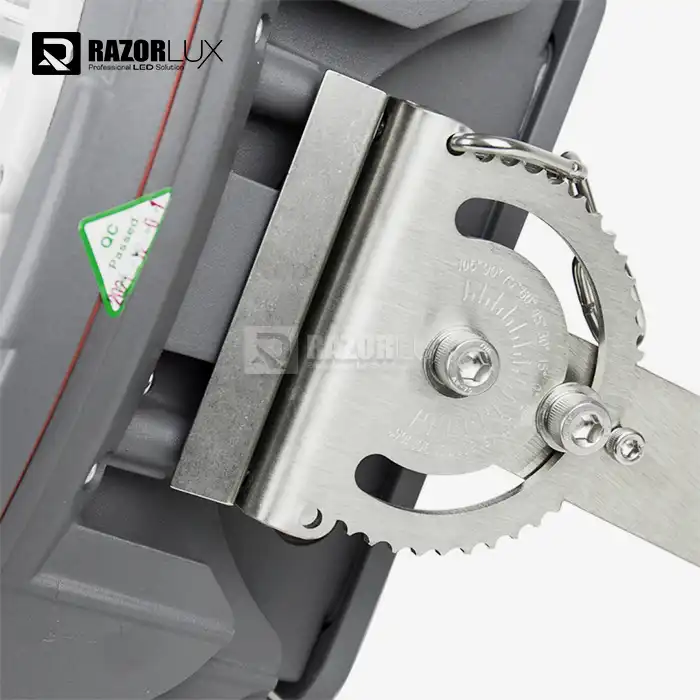

Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
LED High Mast Luminaire - 400W Industrial Lighting Solution
Overview
For ports, roads, and industrial buildings, Razorlux's 400W LED High Mast Luminaire offers 130LM/W efficiency. This fixture can withstand harsh outdoor conditions thanks to its IP67 protection, dual voltage input (AC90-305V/DC127-431V), and flexible beam angles ranging from 15° to 140°.
Key Features
Corrosion-Resistant Design
A 1000-hour salt spray test is passed by marine-grade aluminum housing (C5M certified). The stainless steel bracket is resistant to industrial and marine conditions.
Wide Voltage Compatibility
Direct connection to international grids, backup generators, and solar systems. For the majority of installations, no extra transformers are needed.

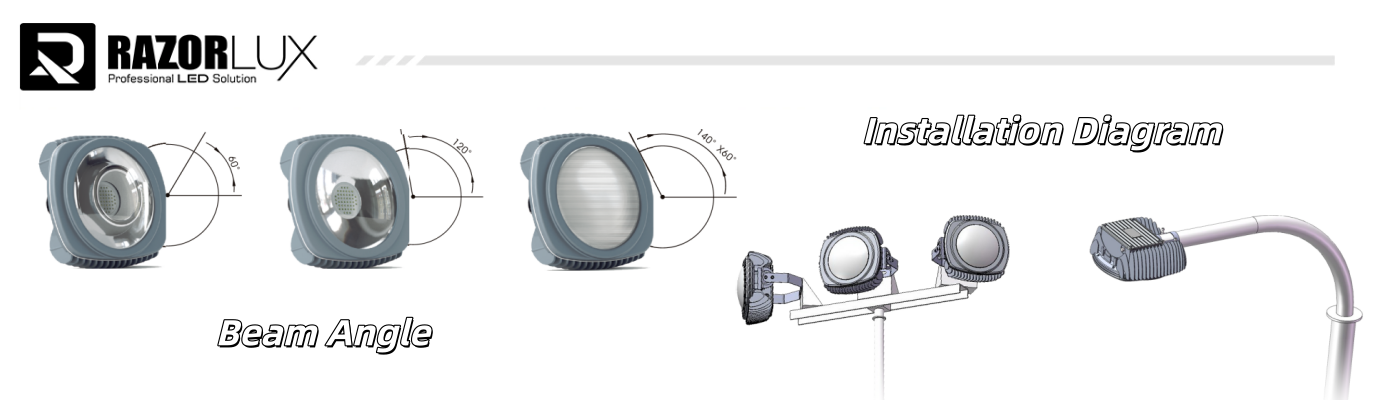

Precision Optics
Seven beam angle options for specific applications:
· 15°-20°: Container terminals (code reading at height)
· 60°-120°: Highway interchanges (uniform coverage)
· 140°x60°: Rectangular yards (reduced light spillage)
Thermal Management
Advanced heat dissipation maintains junction temperature below 85°C in extreme climates (-40°C to +50°C operating range).
Led High Mast Luminaire Specifications
| Specification | Details |
| Model Number | RGL-180A(ZHGL-180A) |
| Rated Power | 180W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 23400LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel |
| Net Weight | 15KG |
| Warranty | 5 Years |
| Certificates | CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |

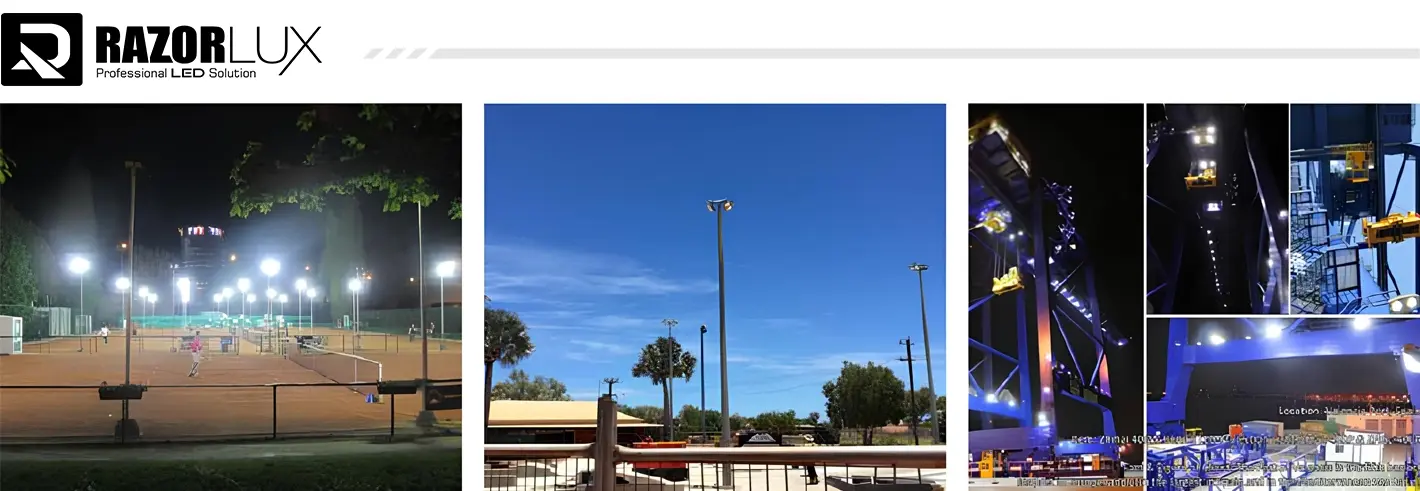

Applications
We recommend upgrading the lighting system to Led High Mast Luminaire.
Ports & Terminals
IP67 sealing protects against saltwater ingress. High vertical illuminance assists crane operations and container identification.
Highway & Transportation
Wide distribution patterns reduce pole count at interchanges. Ra>75 color rendering improves sign visibility and driver safety.
Industrial Yards
Elevated mounting eliminates shadows in storage areas. Dual voltage supports backup power systems during outages.
Airports
Zero upward light ratio meets aviation authority requirements. Flicker-free output ensures safe ground handling operations.
Company Background
Razorlux specializes in high-power LED lighting with 26 years of industry experience. Our Xi'an facility holds over 200 patents in thermal management, driver technology, and optical design. Products undergo testing in our NDRC-authorized laboratory before shipment.
Frequently Asked Questions
What mounting height is recommended?
Optimal performance occurs at 15-40 meters. Select narrow beams (15°-20°) for heights above 30m, wider beams for lower installations.
Can color temperature be customized?
Yes. Standard range is 2700K-6500K. Common requests include 5000K for ports and 3000K for low-insect-attraction environments.
Do you provide lighting design services?
Yes. Our team performs photometric analysis and provides IES files for AGi32/DIALux software based on your site requirements.
Is this suitable for coastal installations?
Yes. C5M corrosion rating and 1000-hour salt spray test certification confirm suitability for marine environments.
Contact Us
For technical specifications, custom configurations, or project quotations:
Contact our Led High Mast Luminaire's team:sam@razorlux.com
