High Mast Light Led
Rated Power: 270W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
400W High Mast Light Led – Industrial-Grade Illumination Solution
Product Overview
Xi'an Razorlux's 400W High Mast Light Led offers 130LM/W efficiency for large-area lighting applications. This fixture works over a broad variety of voltages (AC90-305V, DC127-431V), with adjustable colour temperatures (2700K-6500K) and seven beam angle settings. Marine-grade build and IP67-rated toughness for tough conditions supported by 5-year guarantee.
High Mast Light Led Specifications
| Model Number | RGL-270P(ZHGL-270P) |
| Rated Power | 270W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 120LM/W |
| Lumen Output | 32400LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel |
| Net Weight | 15KG |
| Warranty | 5 Years |
| Certificates | CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |
Key Features
Wide Voltage Compatibility
High Mast Light Led works dependably on both AC (90-305V) and DC (127-431V) power systems. This removes the need for extra voltage regulators and facilitates installation across multiple power infrastructures, including solar-integrated systems.

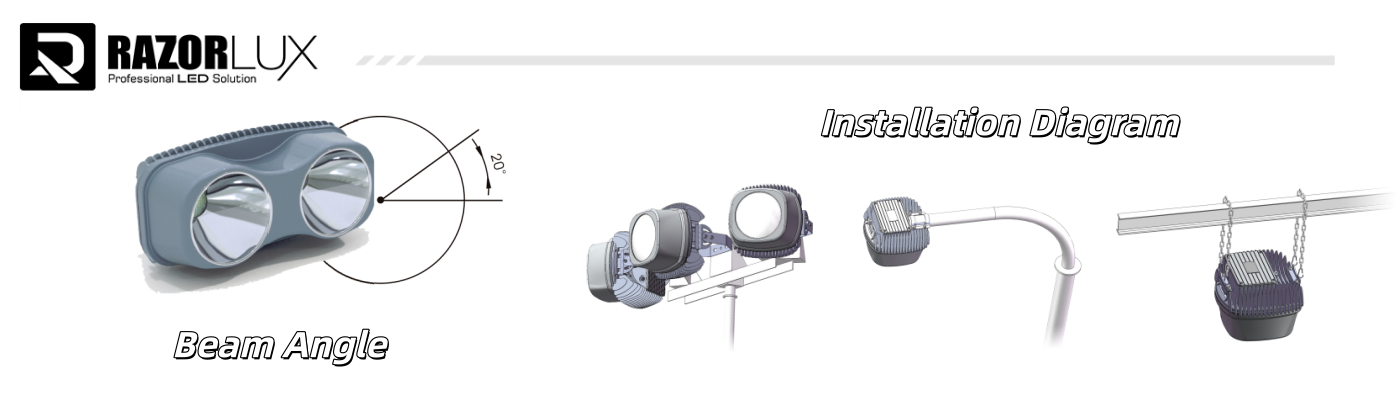

Flexible Beam Control
Seven beam angle adjustments enable fine light dispersion control. Narrow beams (15°-30°) enhance throw distance for poles beyond 30 meters, while wide angles (60°-120°) guarantee equal coverage for greater regions.
Marine-Grade Durability
Stainless steel brackets with C5M corrosion rating resist salt spray, chemical exposure, and severe humidity. IP67 protection prevents against water jets and dust penetration during high-pressure cleaning.
Energy Efficiency
Replaces standard 1000W HPS fixtures while utilising 60% less energy. The 130LM/W efficiency saves running expenses and increases light quality with Ra>75 color rendering.

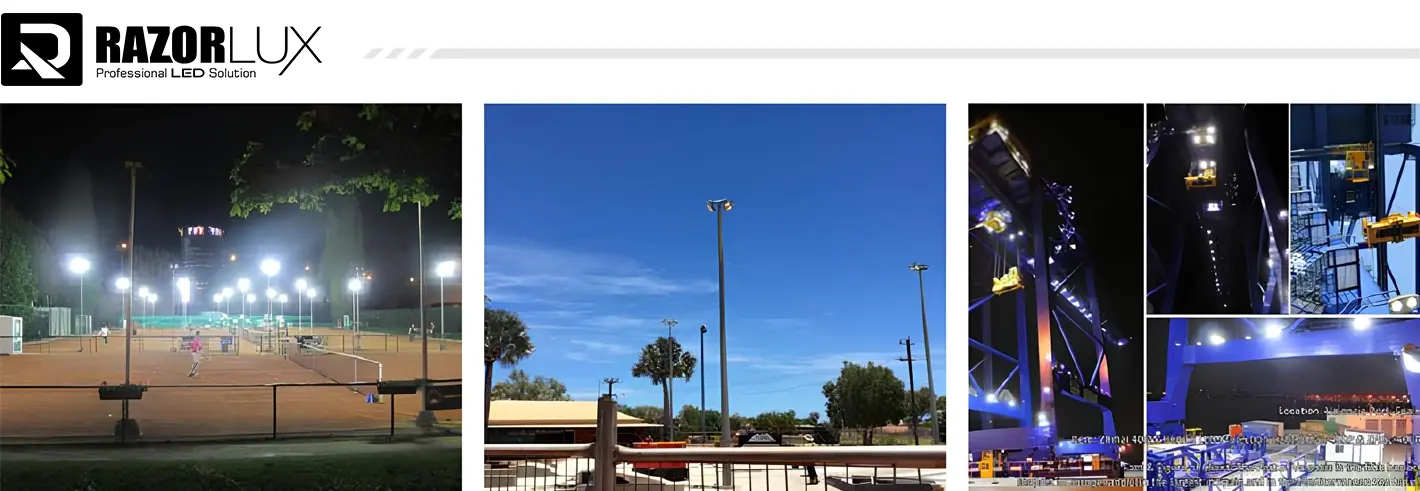

Application Scenarios
Port and Terminal Lighting
Illuminates container yards, loading docks, and crane operating zones. Consistent light output facilitates 24/7 cargo handling activities with greater safety visibility.
Highway and Toll Plaza
Uniform lighting for complicated traffic interchanges. Removes dark patches at important decision points to increase driver reaction time and minimise accident risk.
Industrial and Manufacturing
Lights for outdoor storage yards, material handling areas, and perimeter security zones. IP67 rated for industrial cleaning operations and chemical conditions.
Sports Stadium Lighting
Ra>75 colour rendering, meets broadcast quality criteria. Accurate colour perception and glare management aid athletes, spectators, and photographers.
Mining and Quarry Operations
Designed for vibration resistance for heavy machinery operation. Stainless steel structure to withstand mechanical stress and abrasive dust.
Airport Ground Operations
Integration with aircraft power systems for apron and taxiway lights. Multi-voltage capabilities for conformity with airport electrical standards.
Frequently Asked Questions
Q: Does this replace my current 1000w metal halide fixtures?
Sure. The 400W LED can offer equal or superior ground lighting than 1000W metal halide lamps while decreasing energy usage by roughly 60%. Improved CRI (Ra>75) further boosts visibility over the standard HID sources.
Q: What beam angle should I use for my pole height?
For mounting heights exceeding 30m, narrow beams (15°-30°) focus light for maximum reach. Heights 20-30m often employ 40°-60° beams. Wider angles (120° or 140°×60°) offer a greater coverage below 20m. contact us for a photometric study based on your particular arrangement.
Q: What is the dual voltage input for my project?
The fixture automatically adjusts to any input voltage between AC90-305V or DC127-431V. This removes the need for external transformers, and permits installation in multiple nations, solar systems or industrial DC networks without modification.
Q. How is this fixture serviced?
Low upkeep. Annual ocular checkup and lens cleaning is advised. Because of its sealed construction and corrosion-resistant materials, they don’t need to be repainted or have their gaskets replaced as often as conventional fixtures.
Q: IP65 or IP67? Which one do I need?
IP65 is suitable for most outdoor applications when the unit is mounted above. Select IP67 if the fixture will be exposed to direct high-pressure water jets during cleaning or if it will be placed in locations that may be temporarily submerged.
Q: What kind of heat management does this have?
The innovative housing has enlarged heat dissipation fins and is reliable in ambient temperatures up to 50°C. Proper installation with good air movement around the fixture is key to maximising heat transmission.
Engineering Support
Razorlux provides technical assistance throughout your project:
· Lighting Design: Site-specific layout planning with lux calculations and uniformity analysis
· Photometric Reports: IES files and detailed performance predictions for your mounting configuration
· Custom Solutions: OEM/ODM services for modified wattages, control integration (0-10V, DALI), and housing finishes
· Installation Documentation: Electrical schematics, mounting guides, and maintenance protocols
Sample units are available for on-site evaluation before full procurement.
