led tennis court floodlights
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 23KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

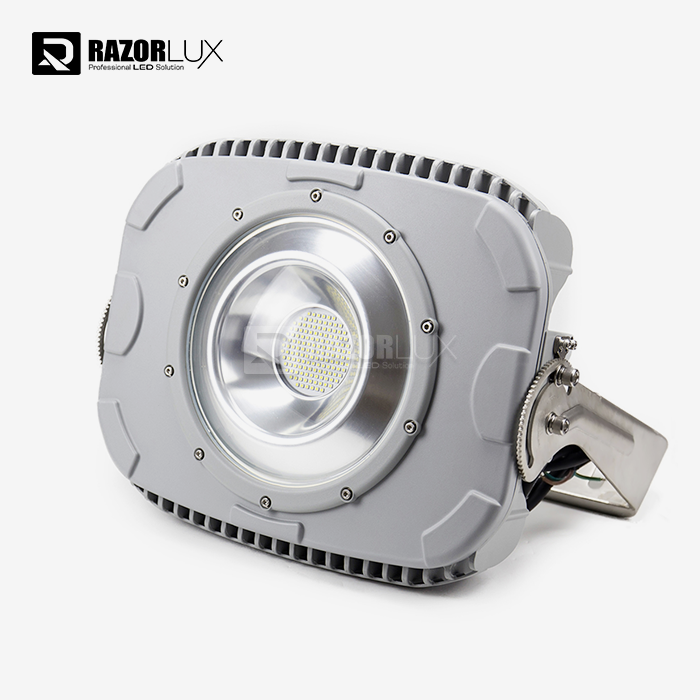

Led Tennis Court Floodlights - Professional Sports Lighting Solutions
Product Introduction
Change your tennis court into a head playing setting with our proficient led tennis court floodlights. Outlined particularly for sports offices, these premium lighting arrangements provide extraordinary brightness and uniform light over your whole court. Our progressed Driven innovation guarantees players appreciate ideal perceivability amid evening matches whereas altogether decreasing vitality utilization. Whether you're overhauling an existing office or arranging a unused tennis court establishment, our floodlights give the culminate adjust of execution, strength, and cost-effectiveness.
Specification
Model | RGL2-400A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 52000lm | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 15kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |

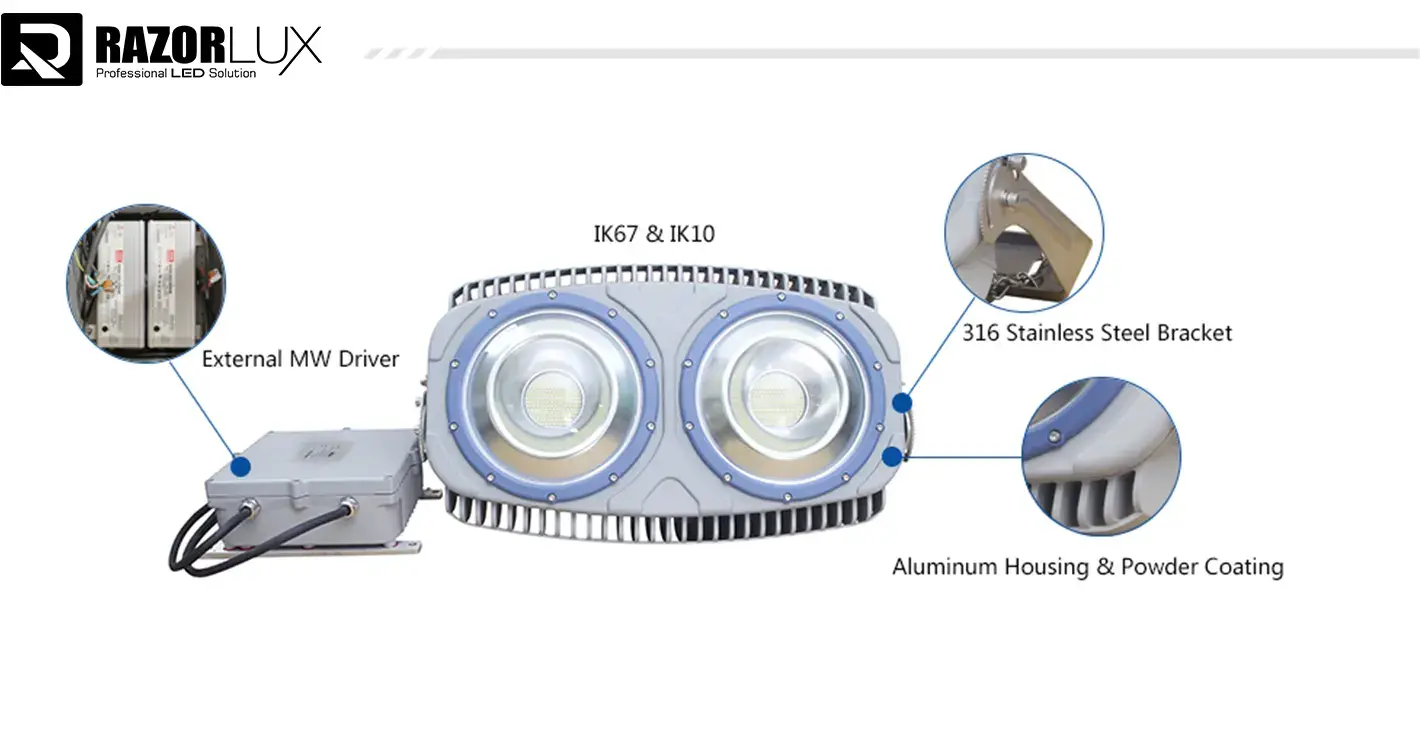

Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |
Why Choose Our Led Tennis Court Floodlights?
Our tennis court lighting frameworks stand out from competitors through demonstrated designing greatness and real-world execution. With over 25 a long time of lighting advancement, we get it precisely what makes awesome sports lighting.
You get predominant light consistency that disposes of shadows and dim spots. This implies players can track the ball impeccably from any court position. Our protected multi-function plan adjusts to different mounting setups and natural conditions.
The vigorous development withstands unforgiving climate conditions year-round. Rain, wind, and temperature vacillations won't influence execution much obliged to our IP67 waterproof rating and corrosion-resistant materials.
Energy effectiveness diminishes your operational costs essentially. Our 130LM/W productivity rating conveys more light per watt than conventional choices, cutting power bills by up to 70%.
Multiple pillar point choices guarantee idealize light conveyance for your particular court format. Whether you require wide-area scope or centered light, we have the right configuration.
Professional-grade unwavering quality implies negligible support prerequisites. Our five-year guarantee illustrates certainty in long-term execution and durability.

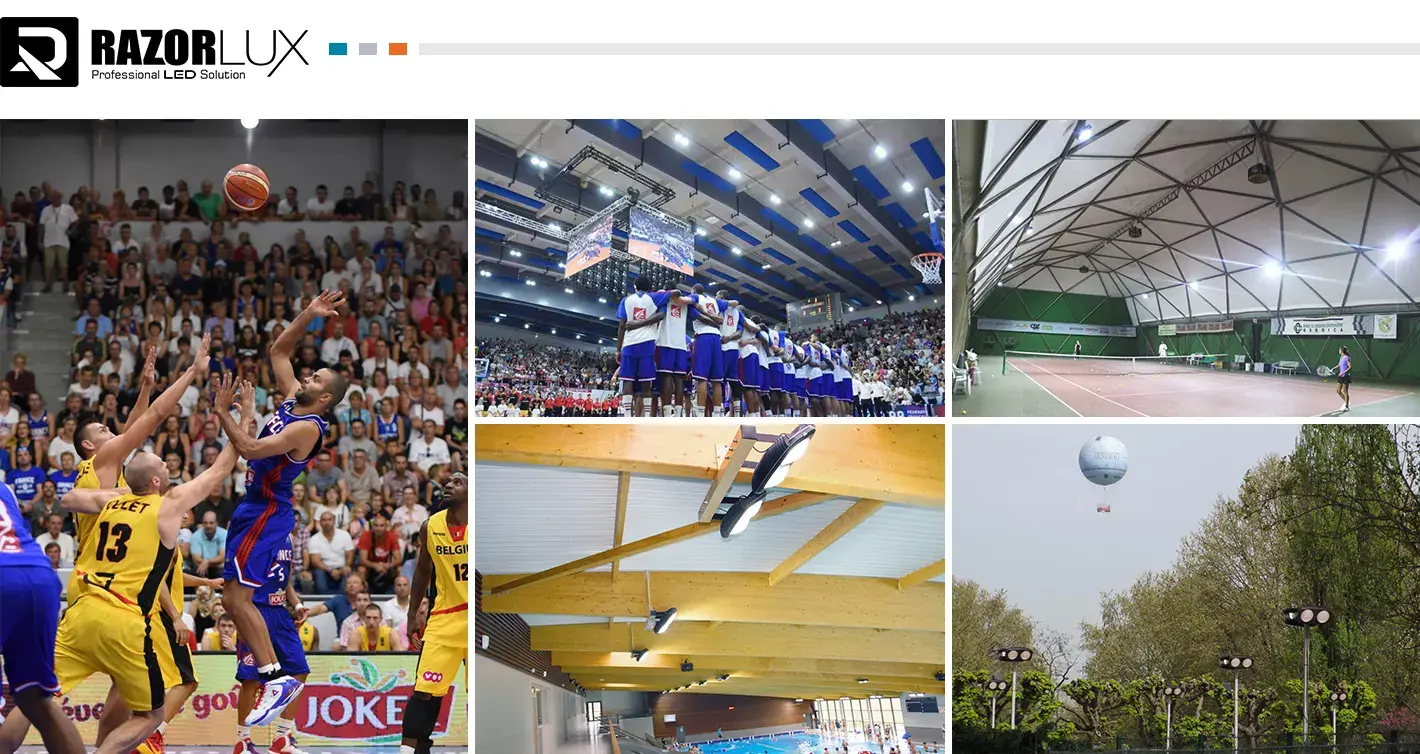

Application
• Proficient Tennis Clubs: High-end offices requiring tournament-standard lighting for competitive play and part satisfaction
• Metropolitan Sports Centers: Open tennis courts serving differing community needs with dependable, cost-effective brightening solutions
• Private Private Courts: Extravagance domestic establishments requesting premium aesthetics combined with uncommon execution standards
• College and School Offices: Instructive teach requiring reliable lighting for understudy games and recreational activities
• Commercial Tennis Institutes: Preparing offices requiring reliable lighting conditions for proficient instruction and player development
• Resort and Inn Courts: Neighborliness scenes advertising visitors premium recreational encounters with legitimately enlightened playing surfaces
• Nation Club Establishments: Elite part offices keeping up tall measures for evening play and social tennis events
Quality Control
Our comprehensive quality administration framework guarantees each installation meets strict execution measures. Each unit experiences thorough testing counting warm cycling, vibration resistance, and photometric verification.
We keep up ISO9001 certification persistently since 2001, illustrating our commitment to reliable quality fabulousness. Our Xi'an Driven Lighting Designing Research facility, authorized by China's National Advancement and Change Commission, conducts progressed item testing and validation.
All components get approaching assessment some time recently gathering. Last items experience 48-hour burn-in testing to recognize and dispose of potential early disappointments. This handle ensures solid execution from day one of installation.
Shipment Samples
We give comprehensive inspecting administrations to guarantee item reasonableness some time recently bulk orders. Test units incorporate total documentation, establishment guides, and specialized determinations for careful evaluation.
Our inspecting prepare regularly takes 7-10 commerce days for standard setups. Custom determinations may require extra time for appropriate designing and testing verification.
Packaging and Transportation
Each installation gets defensive bundling planned for secure worldwide shipping. Shock-absorbing materials and custom-fit holders anticipate harm amid transit.
We offer adaptable shipping alternatives counting discuss cargo for critical ventures and ocean cargo for cost-effective bulk conveyances. Rail transport gives an proficient middle-ground choice for numerous destinations.
All shipments incorporate point by point pressing records, certificates of beginning, and specialized documentation required for traditions clearance and establishment planning.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
After Sales Service
Our commitment amplifies distant past introductory conveyance. Specialized back pros give establishment direction, investigating help, and upkeep suggestions all through your guarantee period.
We keep up broad save parts stock for speedy substitution if required. Our five-year guarantee covers both materials and workmanship, guaranteeing long-term fulfillment with your investment.
Remote demonstrative capabilities permit our group to help with execution optimization and framework alterations as your office needs evolve.
Qualification Certification
Our led tennis court floodlights items carry comprehensive worldwide certifications counting UL (North America), CE (Europe), SAA (Australia), and RMRS (Marine). These certifications illustrate compliance with territorial security and execution standards.
Environmental compliance incorporates RoHS certification for unsafe substance confinements. Our fabricating forms take after strict natural rules whereas keeping up item quality and execution.
FAQ
Q: How many fixtures do I need for a standard tennis court?
A: Most tennis courts require 6-8 fixtures depending on mounting height and court orientation. We provide free lighting calculations to determine optimal placement and quantity.
Q: What mounting height works best for tennis court applications?
A: We recommend 20-25 foot mounting height for optimal light distribution and glare control. Higher mounting may require additional fixtures for proper uniformity.
Q: Can these lights be dimmed for different activities?
A: Yes, our fixtures support 0-10V and DALI dimming protocols. This allows you to adjust brightness for practice sessions, matches, or maintenance activities.
Q: How do these compare to traditional metal halide fixtures?
A: Our LED technology provides 70% energy savings, instant-on capability, and 50,000+ hour lifespan compared to 10,000 hours for metal halide systems.
Q: What maintenance is required for these fixtures?
A: Minimal maintenance needed thanks to LED technology. Annual cleaning and visual inspection ensure optimal performance throughout the warranty period.
Q: Do you provide lighting design services?
A: Absolutely! Our engineering team creates detailed photometric layouts showing light levels, uniformity ratios, and fixture placement for your specific court dimensions.
