500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting

Product Details:
Place of Origin:Shaanxi, China
Brand Name: Razorlux
Certification:ce, LVD, RoHS, Saa
Model Number:RGL-500A

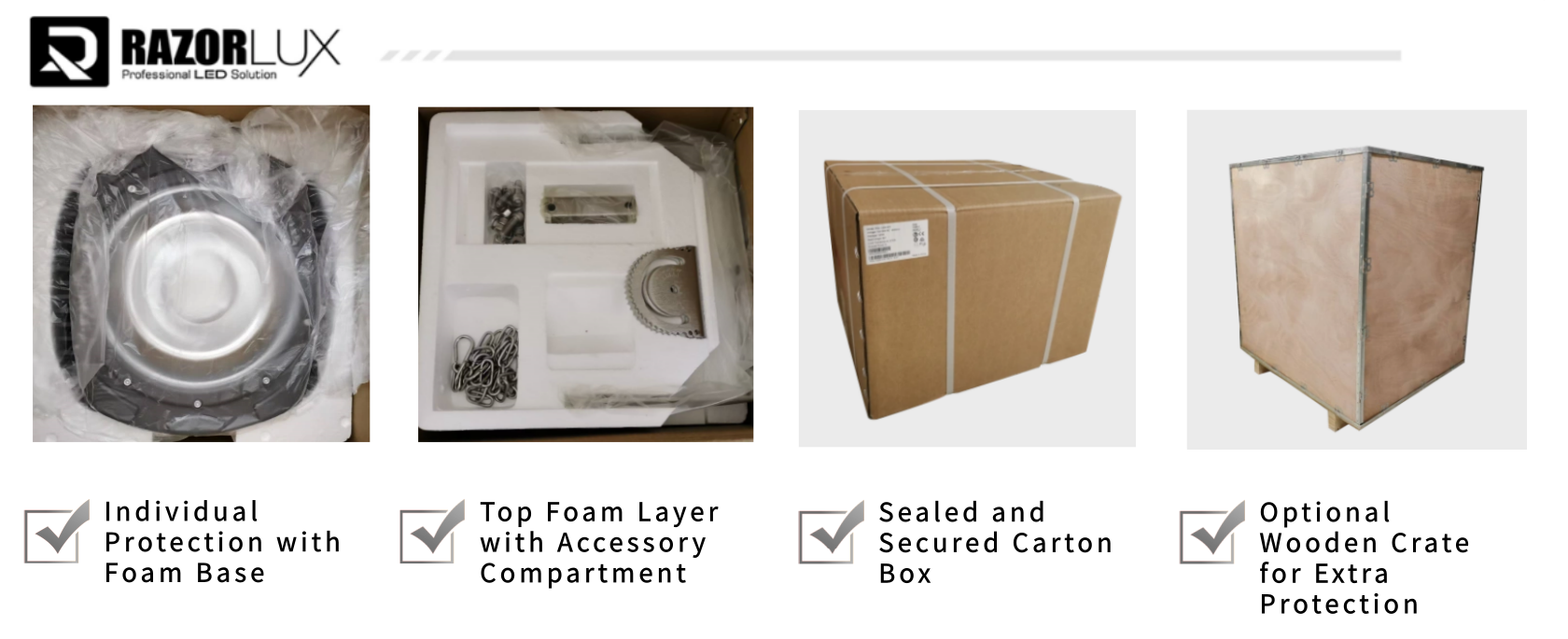

Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month

Send Inquiry Download

Product Description

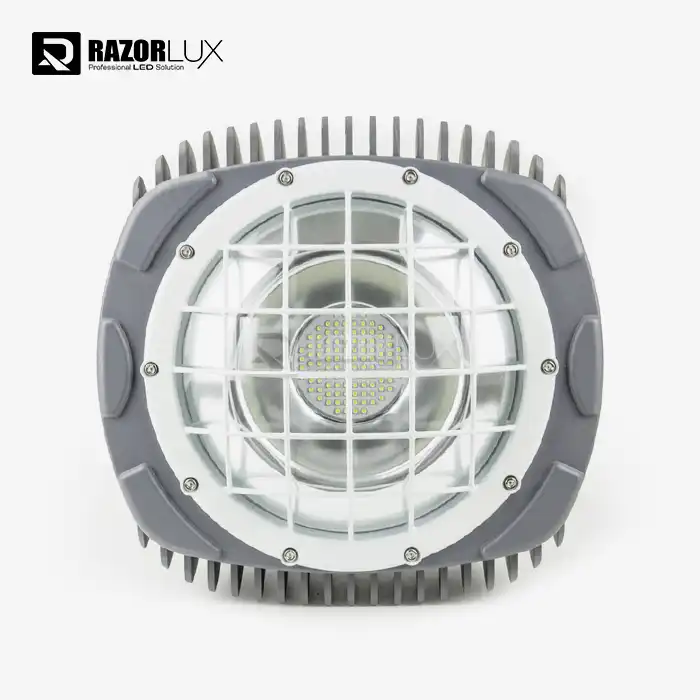

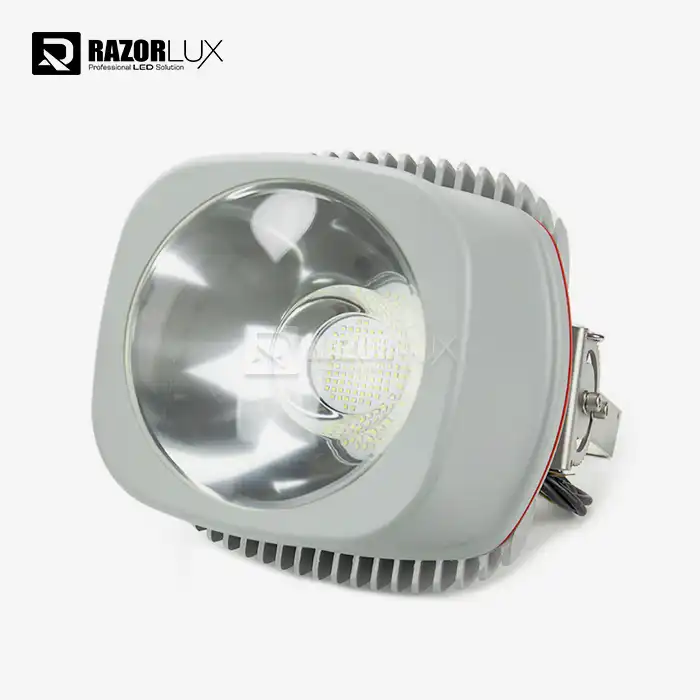

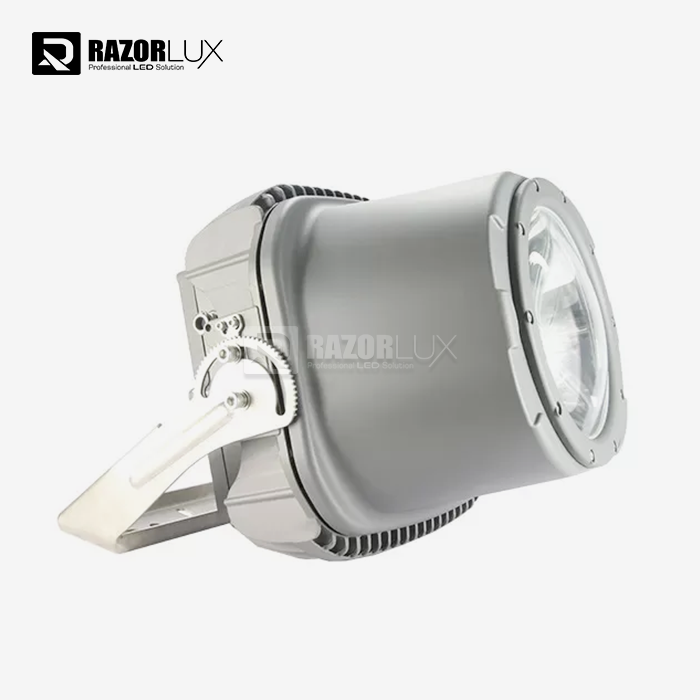

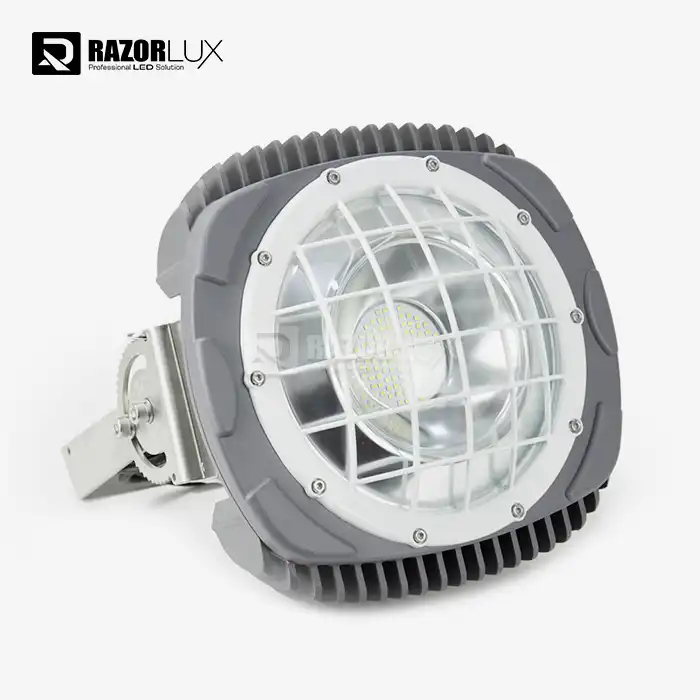

500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting | RGL-500A Arena LightingProfessional Sports & Industrial Arena Illumination

The RGL-500A is a high performance 500W LED lighting for challenging stadium and industrial applications. This 500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting is designed to replace standard 1500W metal halide systems, reducing energy expenditure up to 70% and delivering higher illumination quality. It has an effectiveness of 150-170 lm/W and is IP67 waterproof, making it suitable for professional sports stadiums, ports and large-scale facilities.

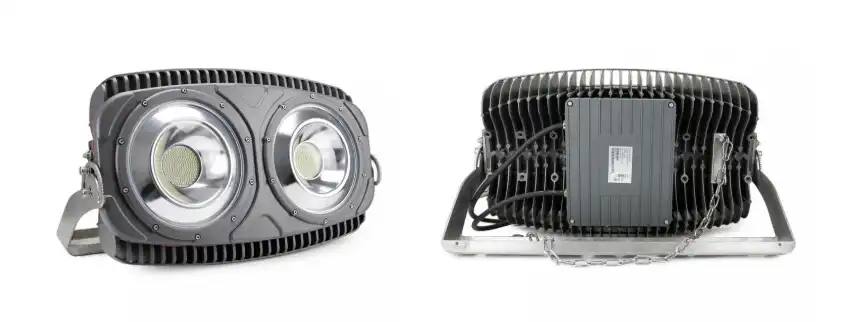

500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting

500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting Specifications

Model		500P-L15	500P-L20	500A-L60	500A-L120	500A-L140

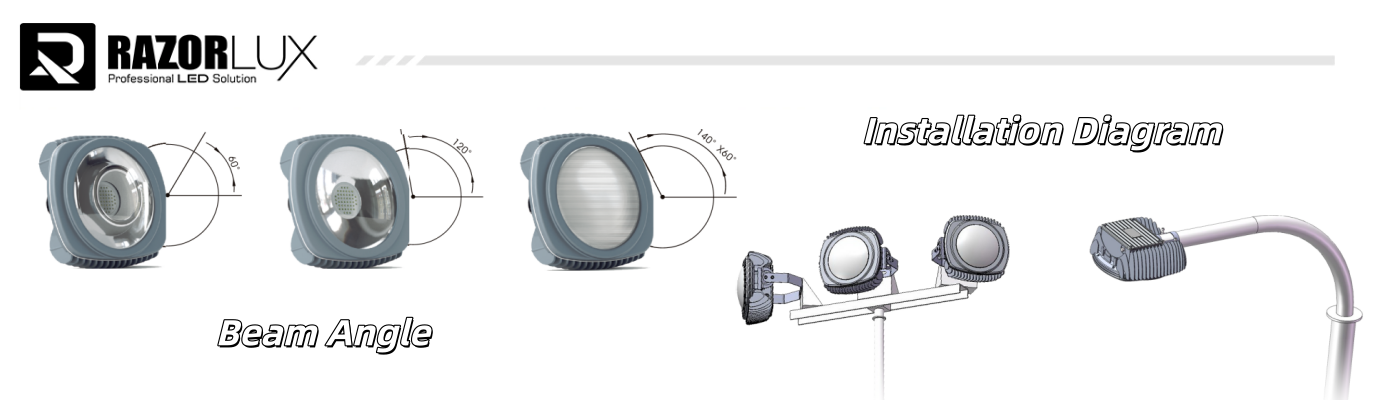

Beam Angle		15°	20°	60°	120°	140°x60°
Stable Flux(5700K after 1 hour)		55,000 lm	57,500 lm	65,000 lm	67,500 lm	67,500 lm
Dimension (mm)		671x405x374mm 671x405x322mm 671x405x204mm
Power Consumption	LEDs	450W
	Driver	50W
	Total	500W
Replace HID Lamp		1200 ~ 1500W
Net Weight		29kg (64lbs) with stainless steel floodlight bracket
Color Temperature		5700K (2700 ~ 6500K available on request)
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum
Coating		Powder Coating
IP Class		IP 65 (Upgradeable to IP 67)
Insulation Class		Class I
Working Temperature		-40 ~ 60C / -40 ~ 140F
Working Humidity		10% ~ 95%
AC Input		100~ 306Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Key Performance Features

Energy Efficiency & Cost Reduction

The RGL-500A replaces 1500W metal halide lamps, providing equal or greater foot-candle levels on the target surface. Savings in energy expenses lead to 65-70% decrease in operational costs throughout the lifespan of the fixture.

Advanced driver technology delivers consistent output with <3% ripple current, avoiding flicker that may impact high-speed cameras and broadcast equipment.

Thermal Management System

The integrated cooling structure dissipates heat effectively via the chimney effect airflow. Junction temperatures are kept below 75 °C even during continuous operation, so directly increasing the LED lifetime to more than 100,000 hours.

This thermal control avoids the lumen depreciation that is prevalent in conventional lights running at high temperatures.

Weather & Impact Protection

Waterproof Construction:

IP67 certified sealing protects internal components from rain, humidity and pressure cleaning. Vacuum and pressure tests are used to check the airtight gaskets seal integrity.

Corrosion Resistance:

Powder-coated aluminium housing withstands salt spray testing according to ASTM B117 requirements. This makes the fixture suited for coastal applications where salt water promotes corrosion.

Impact Durability:

IK10 grade implies the fixture withstands 20 joules of impact energy – the equivalent of 5kg mass being dropped from 40cm. This guards against inadvertent contact during maintenance or bad weather.

Surge Protection

Built-in 10KV to 20KV surge protection devices (SPDs) safeguard against voltage spikes from lightning strikes and oscillations in the grid. Such shielding is necessary for outdoor installations on exposed high-mast poles.

Glare Control

UGR <19 is achieved using laser-cut visors and optical shields, providing light to the playing surface and reducing spill light. This helps shield athletes and spectators from bright glare and lowers light pollution.

The modular lens system allows beam angles from tight 10° (for long-throw applications) to broad 90° (for area coverage) for precise light distribution.

Application Scenarios

Outdoor Sports Stadiums

Professional football, soccer and baseball venues need continuous lighting that keeps performance up during live telecasts. The RGL-500A is designed to fulfil Televised Level 1/Level 2 competition criteria and has a CRI >80 for accurate colour reproduction.

4K cameras and high-speed replay systems that are standard in current sports production are supported by the flicker-free operation.

Ports & Marine Terminals

Container terminals are in constant operation under the influence of seawater. Corrosion-resistant coating and IP67 sealing prevent against accelerated deterioration in these hostile situations.

High-mast arrangements are used to achieve the vertical illuminance necessary for safe crane operations and cargo handling.

Indoor Arenas

High-ceiling facilities like swimming centers benefit from chlorine-resistant coatings that extend fixture life. Instant-on capability eliminates the warm-up time required by HID systems, improving safety during competitions.

Industrial & Logistics Facilities

Warehouses and distribution centers require uniform coverage across large floor areas. The modular beam angle options allow customization from focused high-bay lighting to broad area illumination.

The 500W Robust Heavy Duty LED Stadium Lights Arena LED Lighting withstand constant vibration from heavy machinery and pass rigorous structural integrity testing.

Equestrian Arenas

Consistent, shadow-free lighting prevents dangerous dark spots in outdoor riding facilities. Flicker-free operation avoids startling horses that are sensitive to light fluctuations.

Common Questions

Can you replace a 1500w metal halide fixture with a 500w LED?

Yes, in most circumstances. LEDs also provide greater luminous effectiveness (150-170 lm/W) and directional light control, which may deliver similar or superior lighting with one-third the power usage. Actual performance is based on mounting height and target area requirements.

What lightning strike protection does the fixture include?

10KV-20KV surge protection devices are built-in to safeguard internal components from lightning and grid fluctuations. You cannot protect yourself 100%. However, an SPD may greatly minimise the failure rate of equipment in exposed sites.

Is the fixture compatible with high-speed cameras?

Yes. The driver maintains ripple current below 3%, providing flicker-free operation that works with 4K broadcast cameras and slow-motion replay systems.

What is the expected lifespan?

The L70 rating (time to 70% initial lumen output) exceeds 100,000 hours under proper thermal conditions. This translates to approximately 11 years of continuous operation or 20+ years under typical usage patterns.

How is glare controlled?

Precision-cut visors and optical shields achieve UGR <19 by directing light to the target area and cutting off spill angles. This protects viewers while maximizing useful illumination on the playing surface.

Are custom beam angles available?

Yes. The modular lens system offers beam patterns from 10° (narrow, long-throw) to 90° (wide area coverage). Beam angle selection depends on mounting height, spacing, and coverage requirements.

What wind load does the fixture create?

The aerodynamic housing design minimizes wind resistance. Specific wind load calculations (Effective Projected Area) are provided as part of installation planning to verify compatibility with existing pole structures.
