stadium flood light

Patented Multi-function design, suitable for all working environments.
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

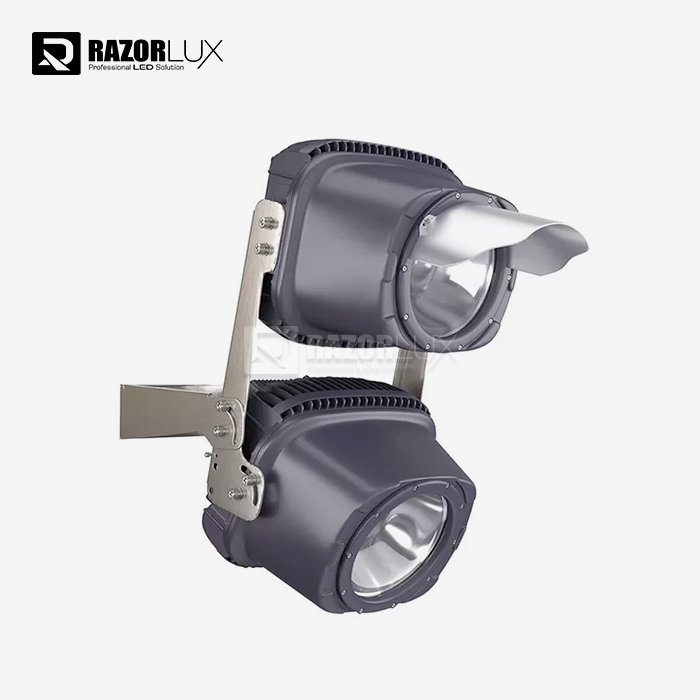

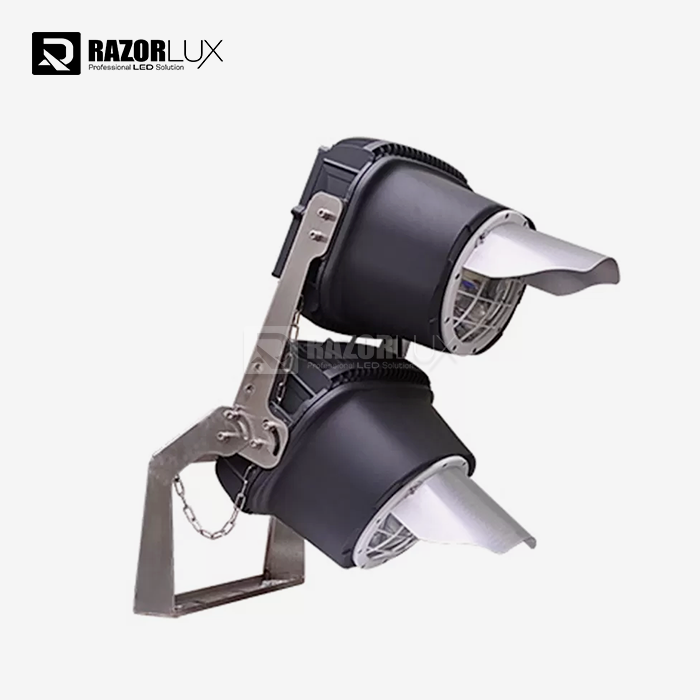

1000W LED Stadium Flood Light | Razorlux Pro Series

Built for stadium flood light since 1998

Instant brightness. Zero warm-up time. Built for 4K broadcasting.

The Razorlux Pro 1000W conveys 130,000 lumens of flicker-free light outlined for proficient sports scenes. If you're tired of:

15-minute warm-up delays some time recently matches
Frequent bulb substitutions each 6-12 months
High power bills from wasteful metal halide systems
Uneven light dissemination causing shadows on the field

This installation understands those issues with demonstrated Led innovation tried over 200+ universal stadiums.

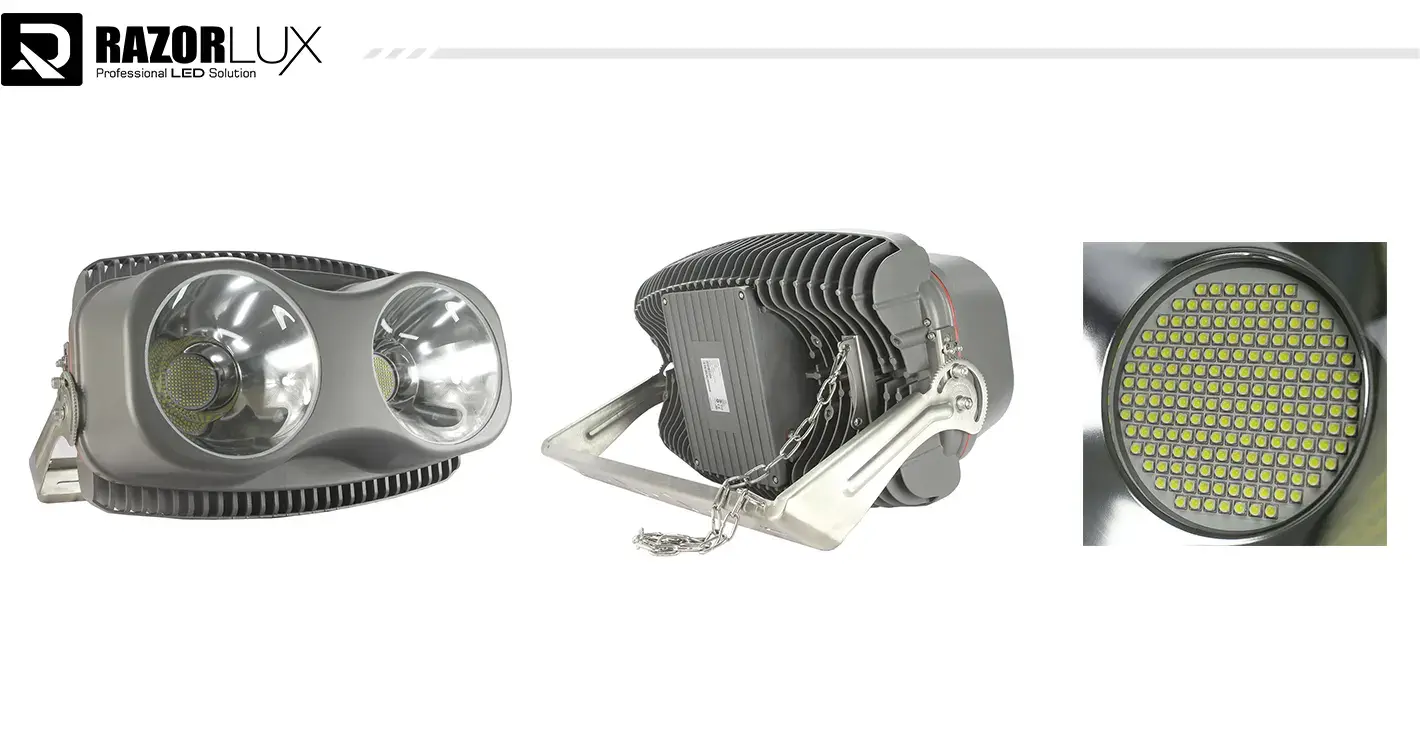

product-1-1

Stadium Flood Light Parameters

Model		RGL2-1000P
Beam Angle		15° 20° 30°
Stable Flux (5700K after 1 hour)		120000lm
	LEDs	900W
Power	Driver	100W
Consumption	Total	1000W
Replace HID Lamp		2200~2500W
Net Weight		38kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80-315Vac input voltage without additional adapter
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

product-1-1

Why Sports Facilities Choose Razorlux

Instant-On Technology

Unlike metal halide frameworks requiring 15-minute warm-up, our Led comes to full brightness in <0.5 seconds. Restart play immediately after power interruptions.

Flicker-Free for Broadcasting

Tested ripple rate <0.5% at 3000fps slow-motion capture. Meets EBU Tech 3335 standards for 4K/8K broadcasting.

Thermal Management You Can Trust

Our patented vapor chamber cooling (Patent #ZL201820394756.3) keeps LED junction temperature below 70°C even at +50°C ambient. This prevents the 30% brightness loss common in poorly cooled fixtures.

Built for Harsh Environments

IP67 rating: Dust-tight and submersible to 1 meter
IK09 impact resistance: Survives 10-joule impacts (equivalent to 5kg dropped from 20cm)
C5M corrosion rating: Marine-grade protection (tested per ISO 12944-9)

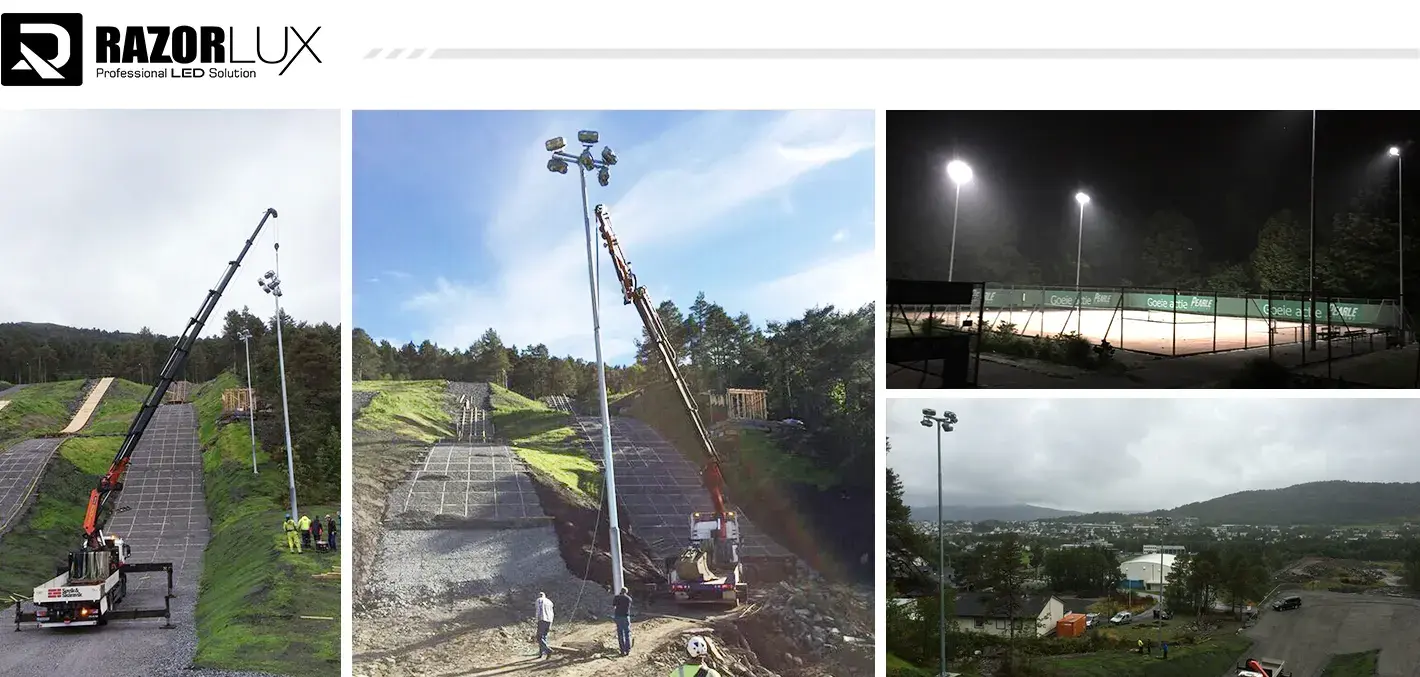

Installed in: Coastal stadiums in Dubai, Singapore, Miami with 0% failure rate over 5 years

Global Voltage Compatibility

Operates on any power system from 90V to 305V AC without additional equipment. Built-in surge protection up to 20kV protects against lightning strikes.

product-1-1

Application Guide

Professional Stadiums (FIFA/UEFA/ICC Standards)

Lighting requirements:

· Vertical illuminance: 2000-2400 Lux (for Class III broadcasting)

· Uniformity ratio: U1 >0.7, U2 >0.8

· Glare Rating: GR <50

Our solution:

· Beam angle: 15° or 25° for long-throw (40m+ mounting height)

· Quantity: Typically 60-80 fixtures for standard football pitch

· Layout: Four-corner or six-tower configuration

product-1-1

Training Facilities & Municipal Sports Complexes

Challenge: Multi-sport venues need flexible lighting for basketball, tennis, volleyball with different lux requirements.

Our solution:

· Wide beam options: 60° or 140°×60° asymmetric

· Dimmable drivers: 0-10V or DALI protocol (10%-100% range)

· Energy scheduling: Auto-dim to 30% during non-peak hours

Industrial & Port Applications

Beyond sports: Our C5M corrosion certification makes this ideal for:

· Container terminals (salt spray environment)

· Mining facilities (dust and vibration)

· Oil refineries (explosive atmosphere with ATEX-compliant housing)

Mounting options:

· High mast poles (25m-40m)

· Marine-grade 316 stainless steel brackets

· Wind resistance: Up to 220 km/h (tested per EN 40-3-3)

product-1-1

What's Included

Complete Lighting Package

1× 1000W LED flood light fixture

1× Adjustable mounting bracket (316 stainless steel)

1× IP67 waterproof power cable (5m standard, extendable)

1× Quick installation guide (English + 12 languages)

Photometric report customized to your venue

Professional Design Services (Complimentary)

Our stadium flood light's engineers provide:

1. Site survey analysis - Review your venue drawings or site photos

2. DIALux simulation - 3D lighting model showing exact lux levels

3. Pole layout optimization - Minimize fixtures while meeting standards

4. Glare assessment - UGR calculation for spectator areas

Typical turnaround: 3-5 business days

5-Year Worry-Free Warranty

Covers:

· LED chips (LM-80 verified components)

· Driver electronics (Meanwell or equivalent brand)

· Housing and optical components

· Bracket and mounting hardware

Doesn't cover:

· Physical damage from accidents

· Unauthorized modifications

· Natural disasters (covered under optional insurance plan)

Claim process:

5. Submit photos + description via warranty portal

6. Receive diagnosis within 24 hours

7. Replacement units shipped within 72 hours (express shipping included)

product-1-1

Limited-Time Offer

Spring 2024 Stadium Upgrade Program

Order 50+ units before May 31, 2024 and receive:

15% volume discount (automatically applied)

Free DALI dimming upgrade

Complimentary on-site commissioning

Priority production slot (3-week lead time guaranteed)

Eligibility: New customers + existing customers expanding to new venues

product-1-1

Common Questions

"How do I know if 1000W is enough for my stadium?"

Quick calculation:

Football pitch: 105m × 68m = 7,140 m²
Target illuminance: 2000 Lux
Total lumens needed: 7,140 × 2000 × 1.3 (utilization factor) = 18.6 million lumens
Fixtures required: 18,600,000 ÷ 130,000 = 143 units

This is simplified - actual number depends on mounting height, pole positions, and uniformity requirements.

"Can these be darkened for preparing vs. competition?"

Yes. Accessible darkening options:
0-10V analog (most common, congruous with standard building controls)

DALI 2.0 (addressable control, perfect for shrewd stadium systems)
DMX512 (for color-changing RGBW version)
Wireless Zigbee (no wiring required, control through smartphone app)
Dimming run: 10%-100% with smooth moves, no flash or color shift.

"What support is required?"

Routine maintenance:

Every 6 months: Visual review of mounting brackets for corrosion
Annually: Check torque on jolts (recommended: 40-50 Nm)
Every 2 a long time: Clean optical focal point with isopropyl liquor (if introduced in dusty environments)

No upkeep needed:
