High Mast Light | Outdoor Infrastructure - Razorlux

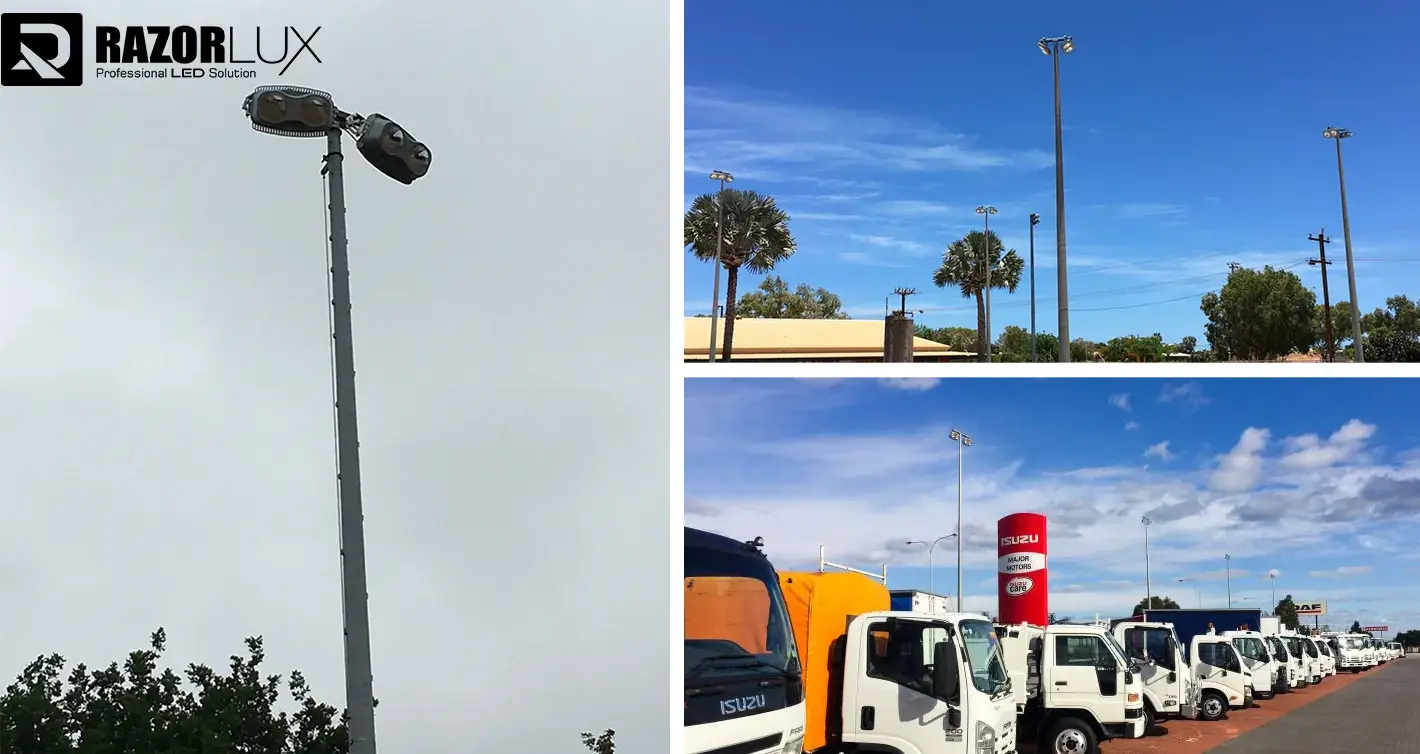

Picture this: a sprawling industrial complex plunged into darkness after sunset, workers navigating hazardous pathways, expensive equipment at risk, and operations grinding to a halt. For facility managers overseeing ports, highways, airports, and large outdoor spaces, inadequate lighting isn't just inconvenient—it's a critical safety liability and operational bottleneck. The LED High Mast Light from Razorlux addresses these pain points head-on, delivering powerful illumination that transforms vast outdoor infrastructure into safe, productive environments around the clock.

Understanding LED High Mast Light Technology for Large-Scale Infrastructure

• The Evolution of High Mast Lighting Solutions

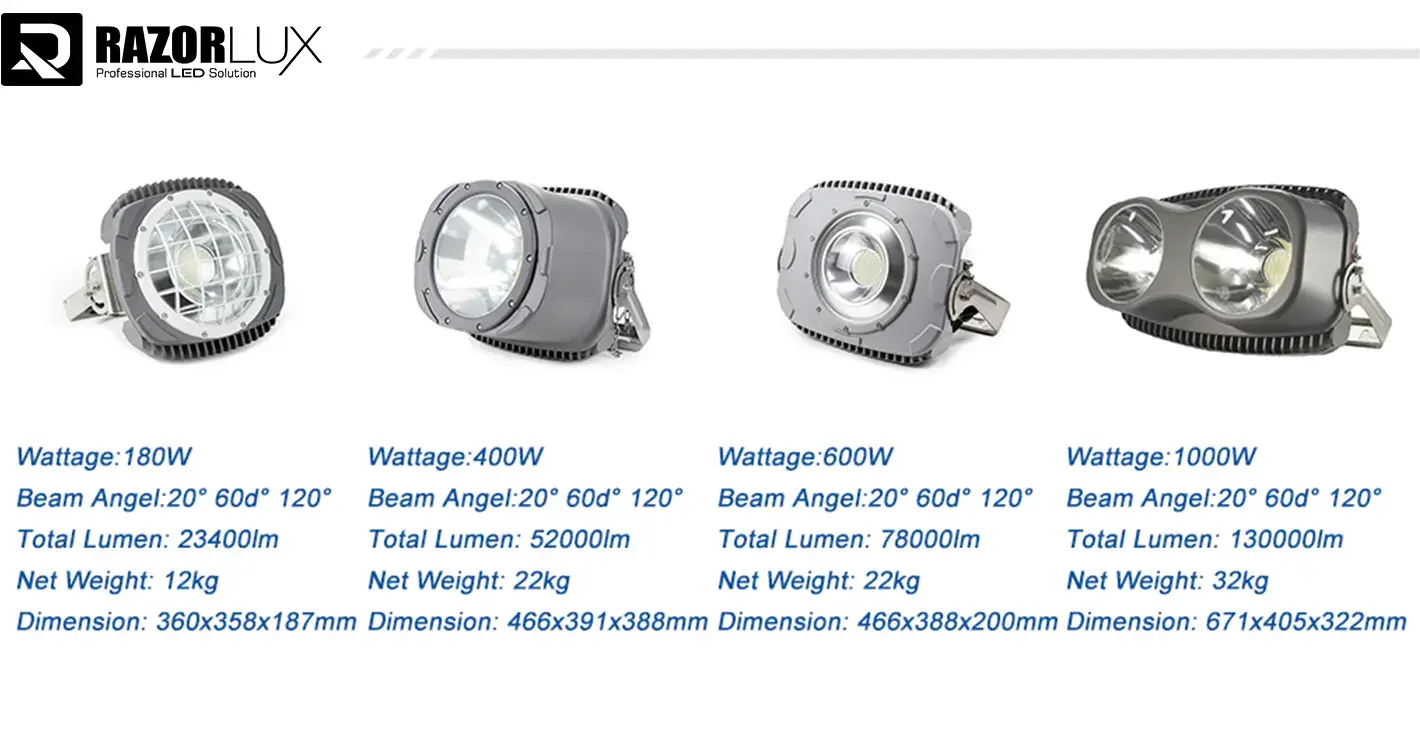

High mast lighting has undergone remarkable transformation over the past two decades, shifting from energy-intensive metal halide and high-pressure sodium lamps to sophisticated LED High Mast Light systems. Traditional lighting solutions consumed excessive power while delivering inconsistent illumination across large areas, creating dark spots that compromised safety and security. Modern LED High Mast Light technology revolutionizes this landscape by offering superior lumen output per watt, extended operational lifespans exceeding 50,000 hours, and intelligent control capabilities that adapt to environmental conditions. The 400W Led High Mast Light from Razorlux exemplifies this evolution, replacing 800-1000W HID lamps while delivering 52,000 lumens of stable, consistent light that blankets expansive outdoor spaces with remarkable efficiency.

• Core Components and Engineering Excellence

The engineering behind effective LED High Mast Light systems involves sophisticated integration of multiple components working in harmony. At the heart of Razorlux's 400W LED High Mast Light lies a precision-engineered LED module operating at 360W, complemented by a 40W Meanwell driver that ensures stable power delivery even under challenging voltage fluctuations. The patented multi-function design accommodates AC input ranging from 110-480Vac without additional adapters, while also supporting DC input from 100-400Vdc and 500-800Vdc—a versatility unmatched in conventional lighting solutions. Advanced thermal management through aluminum housing with powder coating dissipates heat efficiently, maintaining optimal LED performance even in extreme temperatures from -40°C to 60°C. This comprehensive approach to component selection and thermal engineering ensures the LED High Mast Light delivers consistent performance across diverse climatic conditions and demanding industrial environments.

• Optical Performance and Light Distribution

Achieving uniform illumination across vast outdoor areas requires precise optical engineering and careful consideration of beam angle configurations. The 400W LED High Mast Light offers multiple beam angle options—40°, 60°, 120°, and an asymmetric 140°x60°—allowing customization based on specific mounting heights, area dimensions, and illumination requirements. Narrow beam angles concentrate light for greater throw distances, ideal for highway applications where fixtures mount at 30-40 meters, while wider angles provide broader coverage for parking lots and industrial yards. With a lamp efficiency of 130 lumens per watt and color rendering index exceeding Ra75 (with Ra80 and Ra90 available upon request), these LED High Mast Light systems deliver not just brightness but quality illumination that enhances visibility, reduces eye strain, and improves security surveillance effectiveness across critical infrastructure installations.

• Durability Standards for Harsh Environments

Key Advantages of 400W LED High Mast Light for Outdoor Infrastructure

• Energy Efficiency and Operational Cost Reduction

The financial impact of transitioning to LED High Mast Light technology extends far beyond initial purchase costs, fundamentally transforming the total cost of ownership for outdoor lighting infrastructure. A single 400W LED High Mast Light replaces traditional 800-1000W HID fixtures, immediately reducing energy consumption by 50-60% while delivering superior light output. For a typical port facility operating 200 high mast lights for 4,000 hours annually, this translates to energy savings exceeding 400,000 kWh per year—a reduction that significantly impacts operational budgets and sustainability targets. The extended lifespan of LED High Mast Light systems, rated at minimum 50,000 hours compared to 10,000-15,000 hours for HID alternatives, dramatically reduces maintenance costs, eliminates frequent lamp replacements, and minimizes disruptive downtime in critical operational areas where continuous illumination is essential for safety and productivity.

• Versatile Applications Across Critical Infrastructure

• Advanced Control Systems and Smart Integration

Modern infrastructure demands intelligent lighting solutions that adapt to operational requirements while maximizing energy efficiency. The 400W LED High Mast Light supports advanced dimming protocols including 0-10V and DALI systems, enabling integration with building management systems and automated control schemes. Facilities can implement scheduled dimming during low-activity periods, reducing energy consumption by an additional 30-40% without compromising safety. The emergency power function developed by Razorlux provides critical backup operation for two hours during power outages—an essential feature for airports, ports, and emergency response facilities where lighting continuity directly impacts safety and operational continuity. With power factor exceeding 0.98 and total harmonic distortion below 10%, these LED High Mast Light systems ensure clean power consumption that doesn't compromise electrical infrastructure or interfere with sensitive electronic equipment.

• Quality Assurance and International Compliance

Razorlux's commitment to quality manifests through rigorous production testing protocols and comprehensive international certifications. Every 400W LED High Mast Light undergoes photometric testing in integrating spheres to verify lumen output, color temperature accuracy, and beam angle consistency. Extended aging tests simulate years of operation, identifying potential failures before products reach customer sites. Manufacturing takes place in ISO 9001-certified facilities where skilled workers follow standardized assembly procedures, ensuring consistent quality across production runs. The comprehensive certification portfolio—including CE, RoHS, SAA, C-Tick, UL, DLC, and CB approvals—demonstrates compliance with stringent international standards, facilitating project approvals and ensuring legal compliance across global markets from European infrastructure projects to North American industrial installations.

Selecting and Implementing LED High Mast Light Solutions

• Technical Specifications Matching to Project Requirements

Successful LED High Mast Light implementation begins with thorough assessment of site-specific requirements and careful specification matching. Mounting height directly influences fixture selection—installations at 20-25 meters typically utilize narrow beam angles (40°-60°) to concentrate light output, while lower mounting heights of 12-18 meters benefit from wider beam distributions (120° or asymmetric patterns). Color temperature selection impacts both functionality and ambiance: 5000-6500K daylight white enhances security surveillance and color recognition in industrial settings, while 3000-4000K neutral white creates more welcoming environments in public spaces and commercial areas. The 400W LED High Mast Light from Razorlux accommodates these diverse needs through flexible customization options in color temperature (2700-6500K), beam angles, and control systems, ensuring optimal performance regardless of specific application requirements or environmental challenges.

• Installation Best Practices and Mounting Considerations

Proper installation of LED High Mast Light systems is crucial for achieving specified performance and ensuring long-term reliability. The stainless steel bracket provided with the 400W model weighs 15kg and requires secure mounting to poles or structures capable of supporting combined fixture and wind loading. Electrical connections must accommodate the wide input voltage range (110-480Vac) while ensuring proper grounding per Class I insulation requirements. For coastal installations where salt fog and corrosive conditions accelerate material degradation, additional protective measures such as regular cleaning schedules and application of corrosion inhibitors to mounting hardware extend system lifespan. Professional installation by qualified electricians familiar with high-voltage outdoor lighting systems ensures compliance with local electrical codes, proper surge protection implementation, and correct aiming to achieve intended light distribution patterns across target areas.

• Maintenance Strategies for Long-Term Performance

While LED High Mast Light technology dramatically reduces maintenance requirements compared to traditional systems, strategic maintenance programs optimize performance and maximize return on investment. Quarterly visual inspections identify potential issues such as fixture misalignment, bracket corrosion, or lens contamination that could compromise light output or structural integrity. Annual cleaning of optical components removes accumulated dirt, dust, and environmental debris that gradually reduces effective lumen output—a simple maintenance task that can restore 10-15% light loss in industrial environments. The modular design of Razorlux's 400W LED High Mast Light facilitates component replacement when necessary, with separate warranties covering LED modules (5 years), drivers (5 years), and housing (10 years). Establishing relationships with authorized service providers ensures access to genuine replacement parts and technical expertise for troubleshooting rare operational issues that may arise over the fixture's multi-decade operational life.

• Customization Options and OEM Partnerships

Razorlux's flexible manufacturing capabilities extend beyond standard product offerings to comprehensive customization services addressing unique project requirements. OEM and ODM partnerships enable development of branded LED High Mast Light solutions tailored to specific market demands, incorporating custom housing colors, modified mounting systems, specialized optical configurations, or integrated sensors for smart city applications. Pre-sales consultation services help engineers and project managers navigate technical specifications, ensuring selected fixtures meet photometric requirements, electrical standards, and environmental certifications specific to their jurisdiction and application. Custom sampling and prototyping programs allow thorough evaluation before committing to volume orders—particularly valuable for large infrastructure projects where specification accuracy directly impacts long-term operational success and stakeholder satisfaction.

Conclusion

LED High Mast Light technology represents the future of outdoor infrastructure illumination, combining energy efficiency, durability, and performance in solutions that transform vast spaces into safe, productive environments. Razorlux's 400W LED High Mast Light delivers this promise through proven engineering excellence and unwavering commitment to quality.

Ready to Transform Your Outdoor Infrastructure?

As a leading China LED High Mast Light manufacturer, China LED High Mast Light supplier, and China LED High Mast Light factory, Razorlux offers competitive LED High Mast Light wholesale pricing and transparent LED High Mast Light price structures. Browse our complete range of LED High Mast Light for sale solutions at our website. Contact our expert team today at sam@razorlux.com to discuss your project requirements, request customized samples, or receive a detailed quotation. Bookmark this guide for future reference—your trusted resource for professional lighting solutions backed by over 200 patents, comprehensive certifications, and 5-year warranties that guarantee long-term performance and reliability.

References

1. Illuminating Engineering Society, "Recommended Practice for Roadway Lighting," edited by IES Roadway Lighting Committee, Illuminating Engineering Society of North America

2. Chen, Y., Zhang, M., and Liu, H., "Thermal Management and Optical Design of High-Power LED High Mast Lighting Systems for Outdoor Applications," Journal of Industrial Photonics and Lighting Technologies

3. International Commission on Illumination, "Guide on the Limitation of the Effects of Obtrusive Light from Outdoor Lighting Installations," CIE Technical Committee 5-12, Commission Internationale de l'Eclairage

4. Department of Energy, "LED Luminaire Lifetime: Recommendations for Testing and Reporting," Solid-State Lighting Program, U.S. Department of Energy Building Technologies Office
