When to use high bay lights?

Are you struggling with dim, inefficient lighting in your warehouse or manufacturing facility? Does your current lighting system fail to adequately illuminate tall shelving units and create dangerous shadows on the floor? LED High Bay Lights are specifically designed to solve these challenges in spaces with ceiling heights ranging from 20 to 45 feet, delivering powerful, uniform illumination that transforms productivity and safety in industrial and commercial environments.

Understanding LED High Bay Lighting Requirements for Different Ceiling Heights

• Determining Optimal Ceiling Height for LED High Bay Lights

Selecting the appropriate lighting solution begins with accurately measuring your facility's ceiling height. LED High Bay Lights are engineered for spaces with ceilings exceeding 20 feet, where conventional lighting fixtures simply cannot deliver adequate illumination. The specialized design of these fixtures includes advanced reflectors and optical systems that direct light downward efficiently, preventing the light from dissipating before reaching the working surface. When ceiling heights reach 25 feet or more, standard fixtures would require excessive wattage to compensate for the increased distance, leading to energy waste and inadequate floor-level brightness. The 240W Ufo High Bay from Razorlux exemplifies this engineering excellence, utilizing Lumileds and Samsung LEDs with over 135lm/w system efficiency to ensure every watt translates into usable light at ground level.

• Calculating Lumen Requirements Based on Space Dimensions

Understanding lumen output requirements is essential for achieving proper illumination levels across your entire facility. For ceiling heights between 20-25 feet, facilities typically require 16,000-25,000 lumens per fixture, while spaces with 30-35 foot ceilings demand 36,000 lumens or more to maintain adequate foot-candle levels. LED High Bay Lights from Razorlux offer customizable solutions with power options ranging from 100W to 240W, each delivering 120lm/w lamp efficiency that ensures consistent brightness without excessive energy consumption. The relationship between lumens and space dimensions directly impacts worker safety and productivity, as insufficient lighting creates hazardous shadows and eye strain. Professional facility managers should calculate the total square footage, ceiling height, and desired foot-candle levels before selecting their LED High Bay Lights configuration.

• Comparing UFO versus Linear High Bay Light Designs

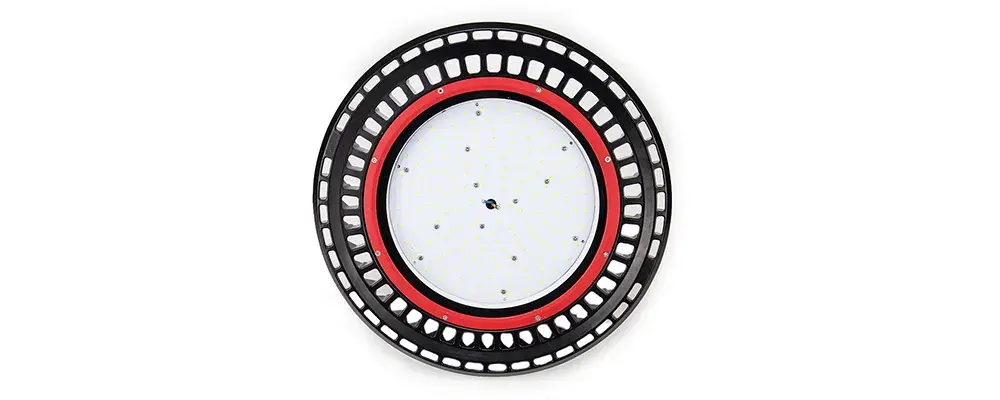

The choice between UFO and linear configurations significantly affects light distribution patterns and installation flexibility. UFO-style 240W UFO High Bay fixtures feature compact, round designs that excel in point-source applications, making them ideal for warehouses with open floor plans and tall storage racks. These circular fixtures provide 360-degree light distribution with specialized reflectors that concentrate illumination downward, ensuring minimal light loss and maximum floor coverage. Linear LED High Bay Lights, conversely, offer rectangular form factors that work exceptionally well in facilities with long aisles or production lines where directional lighting enhances visibility along specific pathways. Razorlux's UFO models feature exterior Meanwell drivers for outstanding heat dissipation and easy maintenance, extending fixture lifespan while reducing operational costs. The selection between these designs should consider mounting height, space layout, and specific task lighting requirements to optimize both performance and energy efficiency.

• Evaluating Mounting Options for Different Facility Types

Proper mounting methodology directly influences both lighting performance and maintenance accessibility throughout the fixture's operational life. LED High Bay Lights can be installed using suspension methods including chains, hooks, and pendants, or surface-mounted directly to ceiling structures depending on architectural constraints and aesthetic preferences. Suspended installations provide flexibility for adjusting light height and direction, particularly valuable in facilities undergoing reconfiguration or expansion projects. The 240W UFO High Bay models from Razorlux accommodate various mounting configurations with dimensions of Ø400×196mm and net weights starting at 3.8kg for 100W units, ensuring structural compatibility across diverse ceiling types. Surface mounting delivers cleaner appearances and increased stability in environments subject to vibration or mechanical activity. Facility managers should assess ceiling structural integrity, maintenance access requirements, and local electrical codes when determining optimal mounting approaches for their LED High Bay Lights installation.

Industrial and Commercial Applications for LED High Bay Lights

• Warehouse and Distribution Center Lighting Solutions

Modern warehousing operations demand reliable, high-performance illumination that supports round-the-clock inventory management and order fulfillment activities. LED High Bay Lights address the unique challenges of these environments, including tall storage racks reaching 30-40 feet, narrow aisles requiring precise light placement, and varying activity zones from receiving docks to packing stations. The IP65 protection rating of Razorlux's 240W UFO High Bay fixtures ensures dust and moisture resistance critical in facilities handling diverse product categories. Energy efficiency becomes particularly significant in warehouse applications, as these facilities often operate continuously with hundreds of fixtures consuming power simultaneously. Razorlux's LED technology reduces energy costs by up to 50% compared to traditional metal halide systems while delivering superior color rendering (CRI Ra>75) that improves barcode scanning accuracy and visual inspection capabilities. Installation flexibility allows facilities to customize beam angles between 60° and 120° depending on rack configuration and aisle width specifications.

• Manufacturing Plant and Assembly Line Illumination

Production environments present complex lighting challenges where inadequate illumination directly impacts product quality, worker safety, and operational efficiency. LED High Bay Lights provide the consistent, flicker-free illumination essential for precision assembly work, quality control inspections, and machinery operation. The 240W UFO High Bay from Razorlux delivers uniform light distribution across expansive production floors, eliminating the shadows and dark spots that contribute to workplace accidents and defect rates. Color temperature options ranging from 3000K-6500K enable manufacturers to select appropriate lighting characteristics for specific tasks, with cooler temperatures enhancing focus during detailed assembly work and warmer tones creating comfortable environments for extended shift operations. The exterior Meanwell driver design facilitates maintenance without disrupting production schedules, as technicians can access electrical components without removing entire fixture assemblies. Manufacturing facilities benefit from the five-year warranty coverage and CE certification that ensure compliance with industrial safety standards and minimize downtime risks.

• Sports Facility and Recreation Center Requirements

Athletic facilities require specialized lighting solutions that accommodate both competitive events and general recreational activities while meeting stringent safety standards. LED High Bay Lights provide the high lumen output necessary for gymnasiums, indoor sports arenas, and fitness centers where ceiling heights frequently exceed 25-30 feet and uniform illumination prevents dangerous shadows during fast-paced activities. The instant-on capability of LED technology eliminates the warm-up periods associated with traditional HID fixtures, allowing facilities to implement energy-saving occupancy sensors without compromising user experience. Razorlux's 240W UFO High Bay fixtures deliver glare-free illumination critical for sports requiring precise visual tracking of balls or equipment, while the robust construction withstands the vibrations from athletic activities and mechanical systems. Sports lighting projects must address broadcast requirements, spectator viewing comfort, and athlete performance needs simultaneously, making the customizable beam angles and color temperatures of LED High Bay Lights invaluable for achieving optimal conditions across diverse applications.

• Retail and Commercial Space Implementation

Large-format retail establishments including supermarkets, home improvement centers, and exhibition halls leverage LED High Bay Lights to create inviting shopping environments while managing operational costs effectively. The superior color rendering capabilities of quality LED High Bay Lights enhance merchandise presentation, allowing customers to accurately perceive product colors and textures under artificial illumination. Razorlux's fixtures featuring Samsung and Lumileds LEDs provide exceptional color consistency that maintains brand standards across retail chains and improves customer satisfaction scores. Retail applications benefit from the dimming capabilities of modern LED High Bay Lights, enabling dynamic lighting scenes that adapt to time-of-day conditions, seasonal changes, and promotional events without requiring fixture replacement. The clean, modern appearance of UFO-style fixtures complements contemporary retail design aesthetics while the energy efficiency directly improves profit margins in competitive retail environments. Installation considerations for retail spaces include emergency backup capabilities, integration with building management systems, and compliance with local energy codes that increasingly mandate LED technology for new construction and renovation projects.

Technical Specifications and Performance Factors for 240W UFO High Bay

• Power Efficiency and Energy Consumption Analysis

Energy efficiency represents a critical selection criterion for LED High Bay Lights, as operational costs over fixture lifespan often exceed initial purchase prices significantly. The 240W UFO High Bay from Razorlux achieves industry-leading efficiency ratings exceeding 135lm/w system efficiency, translating directly into reduced utility expenses and lower carbon footprints for environmentally conscious organizations. This efficiency metric encompasses not only LED chip performance but also driver efficiency, optical losses, and thermal management effectiveness. Facilities replacing 400W metal halide fixtures with 240W UFO High Bay units realize immediate 40% energy savings while maintaining or improving illumination levels, with payback periods typically ranging from 18-36 months depending on utility rates and operating schedules. The wide input voltage range (AC85-265V) ensures stable operation across variable power conditions common in industrial settings, preventing flickering and premature failure associated with voltage fluctuations. Energy management becomes particularly significant in facilities operating 24/7, where LED High Bay Lights' extended operational life (50,000+ hours) minimizes replacement frequency and associated labor costs.

• Thermal Management and Heat Dissipation Systems

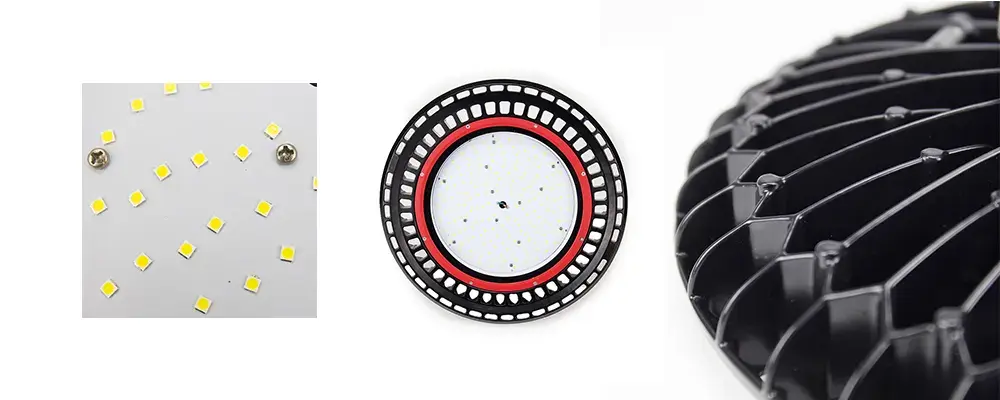

Effective thermal management directly correlates with LED High Bay Lights' performance stability and operational longevity, making it a fundamental design consideration. Razorlux's 240W UFO High Bay incorporates exterior Meanwell drivers specifically engineered for outstanding heat dissipation, positioning temperature-sensitive electronic components outside the sealed fixture housing where they benefit from ambient cooling. This architectural approach prevents the accelerated LED degradation that occurs when junction temperatures exceed manufacturer specifications, maintaining consistent lumen output throughout the fixture's rated lifetime. The aluminum housing construction featured in quality LED High Bay Lights provides superior thermal conductivity compared to plastic alternatives, actively wicking heat away from LED arrays and distributing it across larger surface areas for convective cooling. Facilities with elevated ambient temperatures, such as foundries or glass manufacturing plants, should prioritize fixtures with robust thermal management systems to ensure reliable performance in challenging environmental conditions. The IP65 rating of Razorlux fixtures maintains this thermal performance while providing complete protection against dust ingress and water jets from any direction.

• Color Temperature Selection and Visual Comfort

Color temperature selection profoundly influences workplace atmosphere, task performance, and occupant wellbeing, making it a critical specification for LED High Bay Lights installations. Razorlux offers customizable color temperature options spanning 3000K-6500K, accommodating diverse application requirements from warm, comfortable environments to cool, alertness-promoting workspaces. Cool white temperatures (5000K-6500K) enhance visual acuity and concentration during detailed assembly work, quality inspections, and precision machining operations where color accuracy directly impacts product outcomes. Warmer temperatures (3000K-4000K) create comfortable environments for retail spaces, recreational facilities, and mixed-use areas where extended human occupancy requires consideration of circadian rhythm effects and visual comfort. The high color rendering index (CRI Ra>75) of 240W UFO High Bay fixtures ensures accurate color perception critical for applications including automotive refinishing, textile manufacturing, and food processing where product quality depends on consistent visual assessment. Facility managers should evaluate task requirements, worker demographics, and building usage patterns when specifying color temperatures for their LED High Bay Lights installations.

• Installation Flexibility and Beam Angle Options

Beam angle configuration significantly affects light distribution patterns, fixture spacing requirements, and overall illumination uniformity across facility spaces. LED High Bay Lights from Razorlux offer selectable beam angles including 60° and 120° options, enabling customization based on mounting height, aisle configuration, and specific task lighting requirements. Narrow beam angles (60°) concentrate light into smaller areas with higher intensity, ideal for illuminating tall storage racks or focused work zones from elevated mounting positions exceeding 35 feet. Wide beam angles (120°) distribute light across broader areas with gentler intensity gradients, reducing the total fixture count required while maintaining adequate foot-candle levels throughout the space. The relationship between mounting height, beam angle, and fixture spacing follows predictable photometric principles that facility planners should leverage during design phases to optimize both performance and project costs. Razorlux provides detailed photometric data and complimentary lighting layout services to ensure customers select appropriate beam angle configurations for their 240W UFO High Bay installations, preventing over-lighting or under-lighting scenarios that compromise either energy efficiency or task performance.

Quality Standards and Long-Term Reliability for Industrial LED Lighting

• International Certification Requirements and Compliance

Comprehensive certification compliance demonstrates LED High Bay Lights' adherence to rigorous safety, performance, and quality standards established by international regulatory bodies. Razorlux's 240W UFO High Bay fixtures carry CE certification confirming compliance with European Union health, safety, and environmental protection standards, essential for facilities operating in or exporting to European markets. RoHS certification verifies restriction of hazardous substances including lead, mercury, cadmium, and hexavalent chromium, addressing environmental concerns and ensuring safe disposal at end-of-life. UL certification provides independent verification of electrical safety compliance with North American standards, critical for installations requiring insurance approval and building code adherence. TÜV certification adds additional third-party validation of product quality and performance claims, strengthening customer confidence in long-term reliability. Facilities subject to specific industry regulations, such as food processing or pharmaceutical manufacturing, should verify that their LED High Bay Lights carry appropriate certifications for clean room environments or explosion-proof ratings where applicable.

• Warranty Coverage and After-Sales Support Services

Comprehensive warranty programs and responsive after-sales support distinguish premium LED High Bay Lights manufacturers from commodity suppliers focused solely on initial transaction costs. Razorlux provides five-year warranty coverage on all 240W UFO High Bay models, demonstrating manufacturer confidence in product durability and performance stability throughout extended operational periods. This warranty protection encompasses LED driver failures, premature lumen degradation, and manufacturing defects, providing customers with financial security against unexpected replacement costs. The availability of technical assistance and troubleshooting support ensures facility managers can quickly resolve installation challenges, configuration questions, or operational issues without extended downtime. Replacement parts availability becomes critical for facilities managing large lighting installations, as standardized components enable efficient inventory management and rapid repair responses. Razorlux's global presence through subsidiaries in the USA and Hong Kong enables localized support that respects cultural communication preferences and time zone considerations, while their comprehensive service model includes pre-sales consultation, custom sampling, technical documentation, and post-installation optimization assistance.

• Durability Testing and Environmental Protection

Rigorous durability testing validates LED High Bay Lights' capability to withstand demanding industrial environments characterized by dust, moisture, temperature extremes, and mechanical vibration. The IP65 protection rating of Razorlux's 240W UFO High Bay fixtures provides complete dust ingress protection and resistance to water jets from any direction, essential for washdown environments and outdoor-protected applications. Aging tests conducted during manufacturing ensure each fixture achieves stable performance characteristics before shipment, identifying potential component failures that might otherwise manifest during early operational periods. Photometric testing using integrating spheres verifies actual lumen output matches published specifications, preventing the over-rating practices that plague lower-quality lighting products. Temperature cycling tests confirm reliable operation across the -20°C to +50°C ambient temperature ranges typical in industrial facilities, while vibration testing validates mechanical integrity during transportation and installation. The marine-grade anti-corrosion coating applied to Razorlux fixtures extends protection beyond standard powder coating, addressing the accelerated degradation that occurs in facilities with chemical exposure, high humidity, or coastal proximity.

• Emergency Backup Power and Business Continuity

Power reliability concerns in critical facilities necessitate LED High Bay Lights solutions that maintain illumination during utility outages or emergency situations. Razorlux has developed emergency power functionality enabling their 240W UFO High Bay fixtures to operate for two hours during power interruptions, ensuring safe facility evacuation and continuity of essential operations. This integrated backup capability eliminates the need for separate emergency lighting fixtures, reducing installation complexity and maintenance requirements while ensuring consistent illumination characteristics between normal and emergency operating modes. Facilities subject to life safety codes, including assembly occupancies and high-rise buildings, benefit from LED technology's low power consumption enabling longer backup operation times from battery systems compared to traditional lighting technologies. The instant-on characteristic of LED High Bay Lights ensures immediate full-brightness illumination when switching to backup power, unlike HID fixtures requiring extended warm-up periods that compromise emergency response effectiveness. Manufacturing facilities, data centers, and healthcare facilities should evaluate emergency power requirements during initial LED High Bay Lights specification to ensure compliance with applicable safety codes and operational continuity objectives.

Conclusion

Selecting appropriate LED High Bay Lights requires careful consideration of ceiling height, application requirements, and long-term operational costs. The 240W UFO High Bay from Razorlux delivers exceptional performance for facilities demanding reliable, energy-efficient illumination in challenging industrial environments. With proven technology, comprehensive certifications, and responsive support services, these fixtures represent sound investments for forward-thinking facility managers.

Ready to transform your facility's lighting performance? As a leading China LED High Bay Lights manufacturer, Xi'an Razorlux Optoelectronic Technology Co., Ltd. combines over 20 years of engineering expertise with competitive China LED High Bay Lights factory direct pricing. Whether you need China LED High Bay Lights supplier partnerships for ongoing projects or China LED High Bay Lights wholesale volumes for multi-site deployments, our team delivers customized solutions. Browse our LED High Bay Lights for sale catalog or request LED High Bay Lights price quotations today. Contact our sales team at sam@razorlux.com to discuss your specific requirements and receive complimentary photometric layouts for your facility.

References

1. Mills, E. and Jacobson, A. "From carbon to light: A new framework for estimating greenhouse gas emissions reductions from replacing fuel-based lighting with LED alternatives." Energy Policy, Vol. 67, 2014.

2. Navigant Consulting, Inc. "Energy Savings Forecast of Solid-State Lighting in General Illumination Applications." U.S. Department of Energy Building Technologies Program, 2014.

3. Illuminating Engineering Society of North America. "IES Recommended Practice for Industrial Lighting (IES RP-7-20)." IESNA Technical Committee Reports, 2020.

4. Rea, M.S. (Editor). "The IESNA Lighting Handbook: Reference and Application (9th Edition)." Illuminating Engineering Society of North America, 2000.
