High Mast Luminaire

Patented Multi-function design, suitable for all working environments.
Rated Power: 210W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

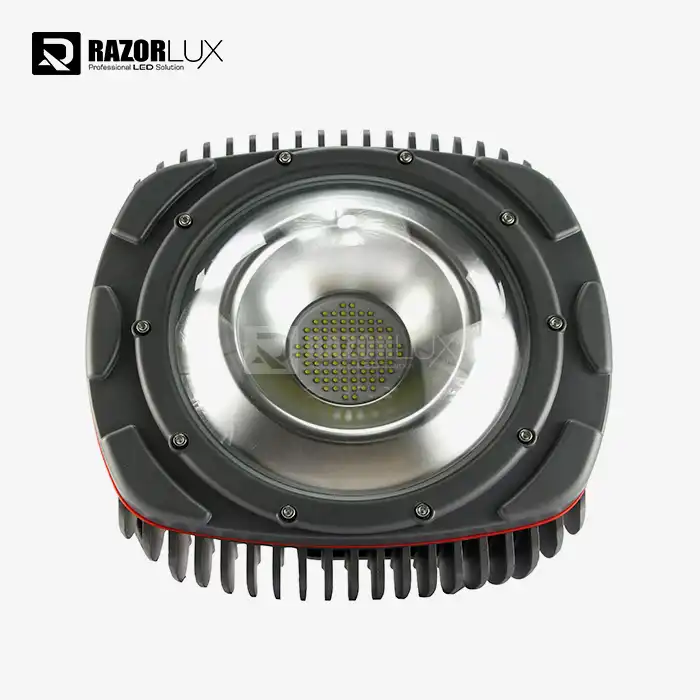

400W High Mast Luminaire for Industrial Applications

In search of reliable high mast lighting for ports, airports or industrial yards? Our 400W High Mast Luminaire is designed for 15-35 meters installations with 130LM/W efficiency and IP67 protection. To reduce your maintenance costs and provide uniform illumination over large areas, it offers flexible beam angles and proven durability in demanding environments.

product-1-1

High Mast Luminaire Overview

This high-mast light is designed for the rigours of industrial applications, it solves the fundamental problems of lighting large areas with uniformity, durability against the elements and reliability over time.

Key Performance Features:

· 130LM/W luminous efficacy for energy saving operation

· Wide voltage compatibility (AC90-305V / DC127-431V) for unstable power

· IP67 waterproof, corrosion resistant for marine grade

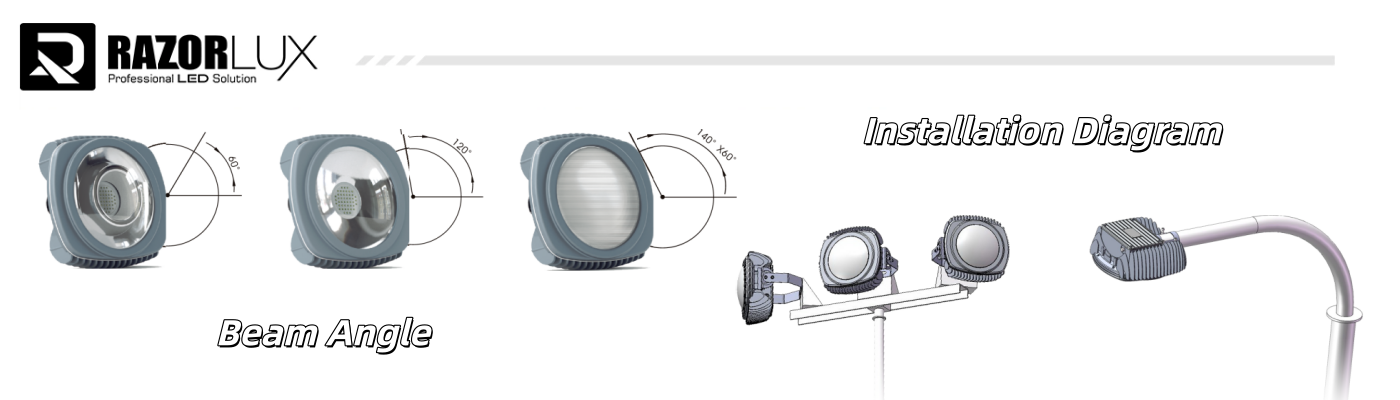

· 7 beam angle choices (15° to 140°x60°) for precise light distribution

· Light weight (15KG) design makes it easy to install on existing infrastructure

The modular design allows field-replaceable components, minimizing downtime during maintenance. Stainless steel mounting brackets resist coastal salt spray and industrial chemical exposure.

product-1-1

Product Specifications

Specification	Details
Model Number	RGL-210A(ZHGL-210A)
Rated Power	210W
Input Voltage	AC100-305, DC127-431
Color Temperature	2700K-6500K
Lamp Efficiency	130LM/W
Lumen Output	27300LM
Beam Angle	15°, 20°, 30°, 40°, 60°, 120°, 140°x60°
Lens	Tempered Glass
Working Temperature	-40° - 60°/ 40F - 140F
CRI	Ra>75
IP Grade	IP67
IK Rating	IK10

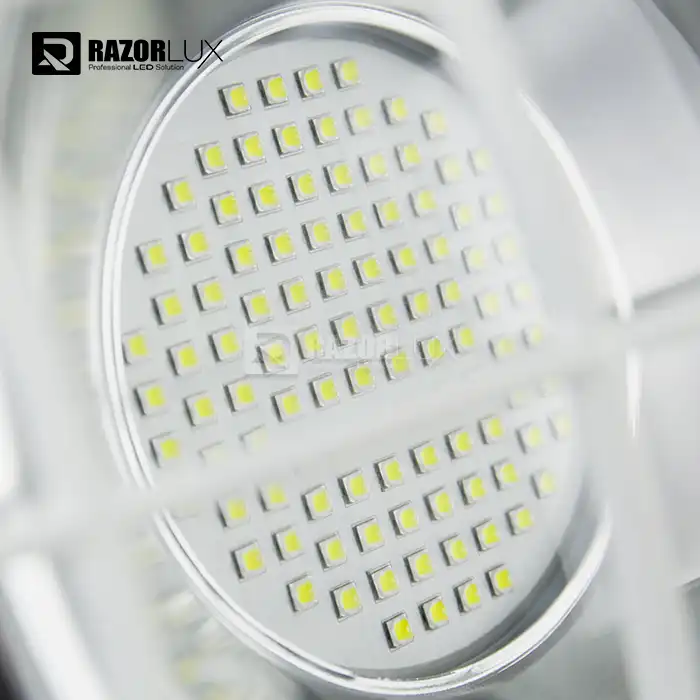

LED Chip	Samsung/Phillip
LED Driver	Meanwell
Housing	Aluminum Alloy
Bracket	Stainless Steel
Net Weight	15KG
Warranty	5 Years
Certificates	CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

product-1-1

Application Scenarios

The following are applications for high mast luminaires:

Seaports and Container Terminals

Port operations in corrosive marine environments require continuous lighting. The housing is IP67 rated and the stainless steel components are salt spray resistant, and the high CRI (>75) enables accurate colour recognition for cargo handling and inspection.

Vertical lighting between stacked containers is achieved with narrow beam choices (15°-30°) without spilling excessive light to the adjacent surroundings.

Airport Aprons and Service Areas

Lighting that does not glare and interfere with the pilot's visibility is required for ground operations. Multiple beam angle configurations allow precise control of light distribution to meet aviation authority requirements for apron lighting.

The wide voltage range ensures stable output even when grid fluctuations common in remote airport locations occur.

product-1-1

Highway Interchanges and Major Intersections

For high-speed traffic, homogeneous lighting without black patches and flicker is required. The correct mounting heights (20-35m) and beam angles will remove the “zebra effect” created by tightly spaced poles at lower heights.

This saves the infrastructure expenses while increasing the visibility of the drivers at complicated interchange geometry.

Industrial Complexes and Manufacturing Yards

Large facilities use centralised high-mast systems to reduce the number of poles. The 400W output covers wide areas from single mounting points, making installation easier.

The L70 has a lifetime of over 80,000 hours (15+ years at 12h/day use), cutting long-term maintenance costs.

product-1-1

Frequently Asked Questions

What's the optimal mounting height for this luminaire?

Typically 15-35 meters, depending on coverage area and beam angle selection. We provide complimentary lighting layout calculations to determine the ideal configuration for your site.

How does it work at harsh temperatures?

The thermal management system provides a steady operation within the temperature range from -40 °С to +55 °С. The large input voltage range (AC90-305V) accommodates for temperature related voltage changes.

What’s the life expectancy?

L70 life (maintaining 70% of original lumens) is >80,000 hours – over 15 years of 12 hours/day operation.

Are dimming and smart controls available?

Customization options include 0-10V dimming, DALI protocols, and photocell integration. Discuss your control requirements during technical consultation.

How do I determine the number of luminaires needed?

Coverage depends on mounting height, area dimensions, and required illuminance levels. We offer free lighting design services including photometric simulations.

About Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. specializes in industrial LED lighting solutions. With over 200 patents covering LED technology, power systems, and thermal management, our engineering team develops products for demanding applications.

Our ISO:9001-certified manufacturing processes ensure consistent quality across all product lines.
