What Makes a Top‑Quality Crane Light Fixture for Harsh Environments?

Industrial facilities face a critical challenge: maintaining safe, productive operations when crane lighting fails during extreme weather, corrosive conditions, or high-vibration scenarios. Without proper illumination, worker safety plummets, productivity stalls, and costly accidents become inevitable. A top-quality Crane Light Fixture for harsh environments must deliver unwavering performance through temperature extremes, moisture ingress, chemical exposure, and constant mechanical stress while providing superior illumination that keeps operations running smoothly and workers protected under the most demanding conditions.

Essential Performance Specifications for Industrial Crane Light Fixtures

• Power Efficiency and Luminous Output Requirements

Modern industrial environments demand Crane Light Fixture solutions that balance high-performance illumination with operational cost efficiency. Advanced LED technology has revolutionized this balance, with premium fixtures achieving luminous efficacy ratings of 130LM/W or higher, dramatically outperforming legacy metal halide and high-pressure sodium systems. The rated power consumption directly impacts long-term operational expenses, making it crucial to select fixtures that deliver maximum lumens per watt. For example, a 150W LED Crane Light Fixture can effectively replace 300-400W traditional HID lamps while producing superior light quality and reducing electricity consumption by up to seventy percent. This efficiency translates into substantial cost savings over the fixture's operational lifetime, particularly in facilities running multiple shifts or operating twenty-four-hour production schedules. The integration of high-quality LED modules ensures consistent light output throughout the fixture's lifespan, preventing the gradual dimming that creates hazardous working conditions and compromises operator visibility during critical lifting operations.

• Voltage Flexibility and Power Quality Standards

Industrial power environments present unique challenges with voltage fluctuations, regenerative braking surges from crane motors, and unstable electrical infrastructure in developing regions or remote facilities. Premium Crane Light Fixture designs incorporate wide-range input capabilities, accepting AC80-315Vac or DC80-400Vdc without requiring additional voltage regulators or transformers. This versatility ensures reliable operation across diverse global markets and protects sensitive LED drivers from damage during voltage spikes common in heavy industrial settings. Advanced power factor correction circuitry maintaining ≥0.98 power factor minimizes reactive power losses and reduces strain on facility electrical systems, while total harmonic distortion below ten percent ensures clean power draw that won't interfere with sensitive control equipment. High-quality drivers from manufacturers like Meanwell provide stable, flicker-free output that protects operator vision and prevents the eye strain and headaches associated with inferior power supplies, maintaining worker comfort and productivity throughout extended shifts.

​​​​​​​

• Color Temperature and Rendering Performance

The selection of appropriate color temperature profoundly impacts operational effectiveness and worker performance in crane-equipped facilities. Research demonstrates that color temperature choices between 2700K warm white and 6500K cool daylight significantly influence visibility, color discrimination, and operator alertness. For precision manufacturing and assembly operations, higher color temperatures around 5000-5700K provide daylight-equivalent illumination that enhances contrast recognition and reduces eye fatigue during extended work periods. Studies conducted by major port operators revealed that crane movements per hour increased approximately seven percent when upgrading from traditional high-pressure sodium lighting to modern LED systems with superior color rendering properties. The Color Rendering Index, measured as CRI Ra>75 for industrial applications and optionally Ra>80 or Ra>90 for specialized tasks, determines how accurately workers perceive material colors and surface conditions. This accuracy proves essential for quality inspection, material identification, and safety assessments where misidentifying color-coded components or damaged materials could result in costly errors or dangerous situations. Premium Crane Light Fixture solutions offer customizable color temperature options that can be tailored to specific operational requirements, whether illuminating container markings in shipping terminals or enabling precision welding in fabrication facilities.

Critical Environmental Protection and Durability Features

• Ingress Protection Standards for Extreme Conditions

The Ingress Protection rating system provides standardized measurement of fixture resistance against solid particle and liquid intrusion, directly correlating to reliability in harsh industrial environments. For Crane Light Fixture applications, IP67 certification represents the gold standard, ensuring complete protection against dust ingress during extended exposure to contaminated atmospheres common in mining operations, cement production, and bulk material handling facilities. The liquid protection component guarantees fixture integrity during temporary immersion up to one meter depth for thirty minutes, providing confidence during pressure washing maintenance procedures, rain exposure on outdoor gantry cranes, and accidental water exposure from overhead piping leaks or cooling system malfunctions. This robust sealing relies on precision-engineered gasket systems, ultrasonic welding techniques, and carefully designed cable entry points that maintain protection integrity throughout the fixture's operational life. Premium manufacturers employ marine-grade gasket materials resistant to ultraviolet degradation, temperature cycling, and chemical exposure that would compromise inferior sealing solutions within months of installation in challenging environments.

• Impact Resistance and Mechanical Durability

Crane-mounted lighting fixtures endure constant vibration from hoist motors, trolley movement, and mechanical shock from emergency stops or load swings that would destroy conventional lighting within weeks of installation. The IK impact rating system, particularly IK10 certification indicating resistance to twenty joules impact force, ensures fixtures survive accidental contact with loads, flying debris from material handling operations, and deliberate vandalism in unsecured facilities. Advanced structural engineering employing reinforced aluminum housings, shock-absorbing mounting systems, and vibration-dampening components protects sensitive LED arrays and driver electronics from cumulative fatigue failure. Testing protocols subjecting fixtures to 100,000 cycles at 3G acceleration levels verify resilience against the constant mechanical stress inherent in crane operations, ensuring reliability throughout the fixture's fifty-thousand-hour operational life expectancy. The integration of safety chains and redundant mounting hardware provides secondary attachment points preventing catastrophic fixture drops even if primary mounting fails, protecting workers below and preventing costly damage to materials and equipment.

• Thermal Management for Extended Lifespan

LED performance and longevity directly correlate with junction temperature management, making advanced thermal engineering the foundation of premium Crane Light Fixture design. Efficient heat dissipation systems employing precision-machined aluminum heat sinks with optimized fin geometry, thermal interface materials with high conductivity coefficients, and natural convection airflow pathways maintain LED junction temperatures well below critical thresholds even during operation in high ambient temperature environments. This thermal control prevents the accelerated lumen depreciation and premature LED failure associated with inadequate cooling, ensuring fixtures maintain ninety percent or greater initial lumen output throughout their rated lifespan. The aluminum housing construction provides dual functionality, serving simultaneously as structural protection and thermal management infrastructure while offering excellent corrosion resistance when finished with high-quality powder coating processes. Premium manufacturers conduct extensive thermal modeling and real-world temperature testing across the full operating range from arctic minus forty degrees through tropical sixty degrees Celsius, validating thermal performance before product release and ensuring reliable operation regardless of installation location or seasonal temperature variations.

Advanced Design and Customization Capabilities

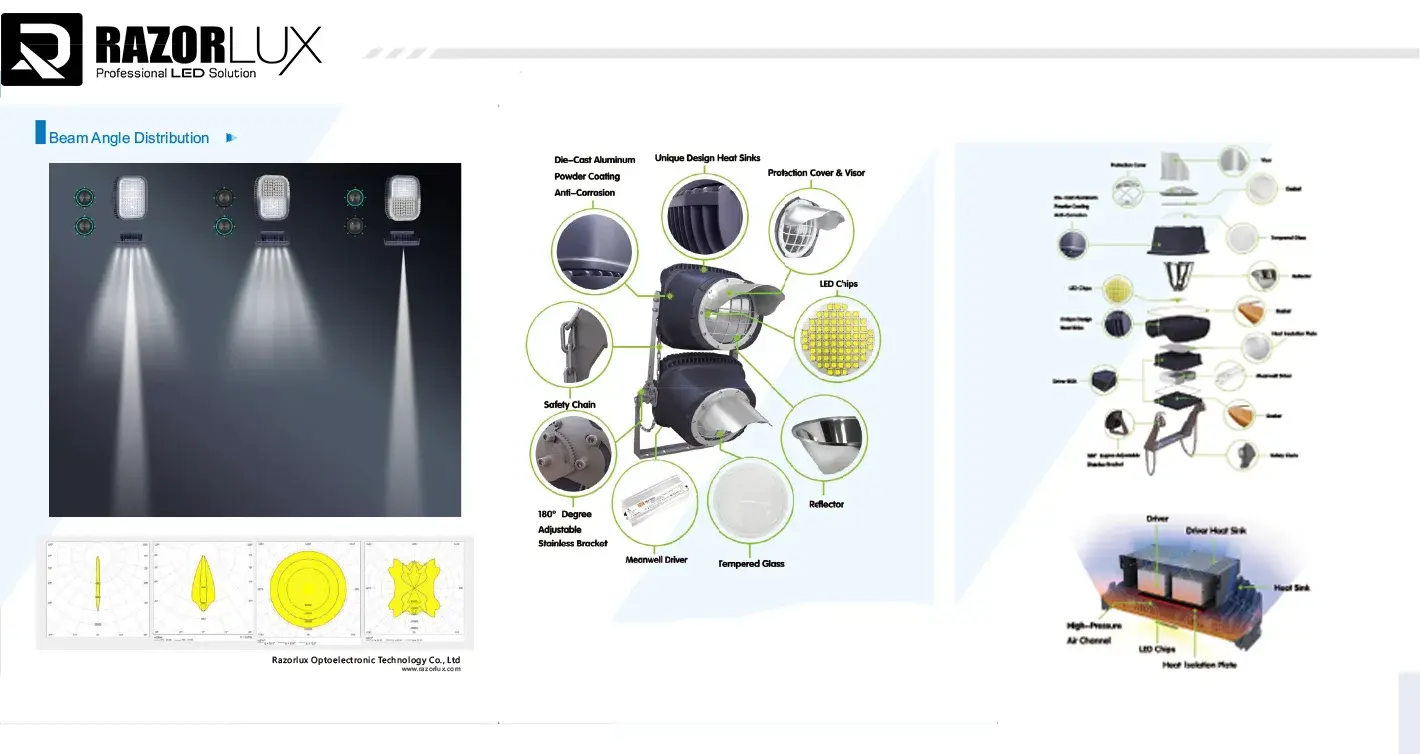

• Beam Angle Optimization for Application-Specific Performance

• Precision Optical Engineering for Maximum Effectiveness

The beam angle specification fundamentally determines illumination effectiveness for specific crane configurations and operational requirements, yet remains frequently overlooked during fixture selection processes. For Crane Light Fixture installations on trolleys operating at heights exceeding fifty feet, narrow beam angles between fifteen and twenty degrees concentrate luminous output into focused patterns that maintain adequate ground-level illumination despite extreme mounting heights. Conversely, lower installations benefit from wider beam distributions that provide broader coverage patterns without creating excessive brightness directly beneath the fixture while leaving peripheral work areas in shadow. Premium optical systems employ precision-molded polycarbonate or PMMA lenses with anti-static treatments preventing dust accumulation that degrades light transmission over time, maintaining consistent illumination performance throughout the fixture's operational life. Some advanced designs incorporate tempered glass protective covers shielding the primary optics from impact damage and facilitating easier cleaning during maintenance procedures. The availability of interchangeable optical systems enables facility managers to optimize illumination patterns without complete fixture replacement when operational requirements change or cranes undergo height modifications during facility expansion projects.

• Customization Options for Specialized Applications

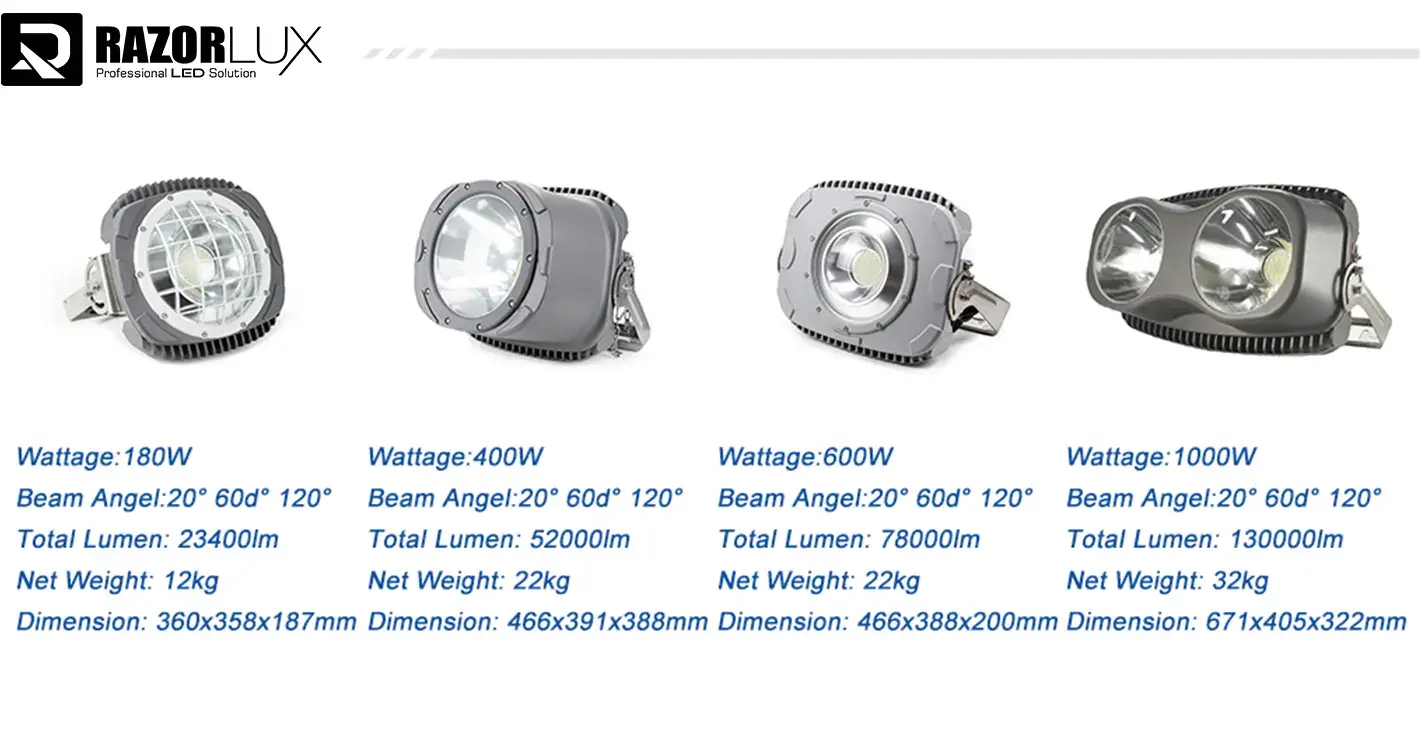

Industrial diversity demands flexible Crane Light Fixture solutions adaptable to unique operational requirements, facility constraints, and regional compliance standards. Leading manufacturers offer extensive customization capabilities spanning wattage selection from compact seventy-five-watt units through high-output four-hundred-watt fixtures, color temperature specifications tailored to specific tasks, housing material variations including fully stainless steel construction for extreme corrosive environments, and mounting bracket configurations accommodating diverse crane structural geometries. Advanced control integration options incorporating zero-to-ten-volt dimming protocols, DALI addressable control systems, and motion sensing capabilities enable sophisticated lighting management strategies that reduce energy consumption during idle periods while maintaining full illumination during active operations. The patented multi-function design approach employed by innovativemanufacturers ensures single fixture platforms serve multiple application scenarios through modular component selection, reducing inventory complexity while maintaining operational flexibility. Custom manufacturing capabilities extend to specialized voltage requirements for unique power systems, emergency backup battery integration providing continued operation during power failures, and explosion-proof ratings for hazardous location installations in petrochemical facilities or grain handling operations.

• Bracket Engineering and Mounting Solutions

Secure fixture mounting presents unique challenges in crane applications where constant vibration, thermal expansion and contraction cycles, and occasional impact loading test mounting system integrity. Premium Crane Light Fixture designs incorporate heavy-duty stainless steel brackets engineered specifically for crane trolley integration, featuring multiple adjustment axes enabling precise aim adjustment after installation and accommodating slight structural variations between crane models. The bracket interface to the fixture housing employs oversized fasteners with lock washers and thread-locking compounds preventing loosening from vibration, while the crane attachment points utilize safety cables as secondary retention preventing fixture drops if primary mounting fails. Anti-vibration mounting pads or isolator bushings placed between brackets and crane structure dampen transmitted vibration protecting sensitive internal components, significantly extending operational life in high-vibration environments like bridge cranes in steel mills or ship-to-shore gantries in container ports. Forward-thinking manufacturers provide detailed mounting drawings and installation guidance specific to major crane manufacturers, reducing installation time and ensuring proper mounting procedures that maintain fixture warranties and protection ratings.

Manufacturing Excellence and Quality Assurance

• Production Testing Protocols

Quality assurance begins at the component level and continues through comprehensive testing of completed assemblies, ensuring every Crane Light Fixture leaving production facilities meets rigorous performance and safety standards. The assembly process employs skilled technicians working from detailed procedures and utilizing precision tooling that ensures consistent build quality across production runs, eliminating the variability associated with manual assembly processes. Automated photometric testing using integrating sphere equipment verifies that luminous output, beam angle characteristics, and color temperature specifications fall within acceptable tolerances, with test data permanently recorded for each fixture serial number providing traceability and quality documentation. Comprehensive aging tests subject finished assemblies to extended operation periods under elevated temperature conditions, accelerating potential failure modes and identifying defective components before customer shipment. This burn-in process typically runs lights continuously for twenty-four to seventy-two hours while monitoring electrical parameters and thermal performance, catching premature failures that would otherwise appear during early customer use. Electrical safety testing verifies proper grounding, insulation integrity, and leakage current levels meeting international safety standards, while mechanical testing confirms housing integrity, bracket strength, and seal effectiveness under simulated operating conditions.

• Certification Compliance and International Standards

Global industrial operations demand Crane Light Fixture solutions complying with diverse regional certification requirements, electrical standards, and safety regulations governing equipment installation in commercial and industrial facilities. Comprehensive certification portfolios including CE marking for European markets, UL recognition for North American installations, SAA approval for Australia and New Zealand, and additional standards like RoHS environmental compliance, CB scheme international recognition, and ISO 9001 quality management system certification demonstrate manufacturer commitment to quality and regulatory compliance. These certifications require independent third-party testing laboratories to verify product compliance with rigorous safety standards covering electrical construction, thermal performance, mechanical strength, and environmental protection, providing facility managers confidence that fixtures meet or exceed applicable requirements for their installation jurisdiction. Marine applications may require additional specialized certifications like Russian Maritime Register of Shipping approval for vessels operating under Russian flag or Lloyd's Register certification for British-flagged ships, necessitating manufacturer familiarity with specialized standards and testing protocols. The investment required to achieve and maintain these diverse certifications reflects manufacturer commitment to serving global markets and providing products suitable for the most demanding applications and regulatory environments.

• Warranty Coverage and Reliability Commitment

Extended warranty periods represent manufacturer confidence in product reliability and willingness to stand behind performance claims with meaningful financial commitment. Premium Crane Light Fixture suppliers offer five-year comprehensive warranties covering LED modules, drivers, and housing integrity, significantly exceeding industry standard three-year warranties and providing facility managers confidence in long-term reliability. Some manufacturers structure warranties with extended coverage for structural components like housings and brackets that may extend to ten years, recognizing these elements should outlast electronic components and providing upgrade paths when LED technology advances require module replacement while retaining serviceable housings. Warranty terms should clearly specify coverage scope, claim procedures, and remediation approaches, whether repair, replacement, or credit toward upgraded products. The warranty period should align with expected operational life, with fifty-thousand-hour LED modules and high-quality drivers designed to exceed five-year coverage periods even in continuous operation scenarios. Manufacturers demonstrating warranty claim rates below industry averages provide indirect evidence of superior reliability, while those with established service networks and parts availability ensure timely claim resolution minimizing operational disruptions.

Comprehensive Support Services and Global Logistics

• Pre-Sales Consultation and Engineering Support

Successful Crane Light Fixture implementation begins with thorough application analysis and expert guidance during product selection, ensuring chosen solutions precisely match operational requirements, installation constraints, and performance expectations. Professional lighting consultants with industrial experience provide detailed needs assessment examining crane configurations, mounting height limitations, ambient temperature ranges, power system characteristics, and special requirements like explosion-proof ratings or emergency backup operation. Advanced lighting simulation software like DIALux enables creation of detailed photometric models predicting illumination levels, uniformity ratios, and glare conditions before purchase commitments, eliminating guesswork and ensuring adequate coverage. These computer simulations incorporate three-dimensional facility models, precise fixture photometric data, and reflectance properties of surrounding surfaces, generating accurate predictions of installed performance and enabling optimization of fixture quantity, mounting locations, and beam angle selections. Technical drawing provision and comprehensive specification documentation support engineering review processes, procurement approvals, and integration with facility electrical and structural systems, ensuring smooth project execution and avoiding costly modifications during installation.

• Customization, Sampling, and Prototyping Services

Complex applications or unique requirements benefit from custom sampling programs enabling evaluation of fixture performance, installation procedures, and operational characteristics before committing to large-scale procurement. Manufacturers offering flexible customization capabilities can modify standard products to meet specific voltage requirements, incorporate specialized mounting brackets, adjust optical characteristics, or integrate customer-specified components while maintaining core product reliability and certification compliance. Sample unit provision with flexible terms including purchase options after evaluation or full credit toward production orders reduces procurement risk and enables hands-on assessment of build quality, illumination characteristics, and installation compatibility. For particularly challenging applications, prototype development services can create unique solutions incorporating customer requirements while leveraging manufacturer expertise in thermal engineering, optical design, and environmental protection, resulting in optimized products that precisely address operational needs while maintaining manufacturability and cost-effectiveness. OEM and ODM partnership programs enable development of branded lighting solutions for distributors, system integrators, or crane manufacturers seeking to differentiate market offerings through proprietary lighting products while leveraging established manufacturing capabilities and technical expertise.

• Global Shipping and Logistics Capabilities

International project execution demands reliable logistics supporting diverse shipping requirements, delivery timeframes, and customs procedures across multiple jurisdictions. Comprehensive transportation options spanning express air freight for urgent requirements, standard air shipping for expedited delivery, China-Europe rail express for cost-effective transcontinental transport, and ocean freight for bulk shipments enable optimization of delivery speed versus transportation cost based on project timelines and budget constraints. For projects requiring rapid deployment, international express services like DHL, FedEx, or UPS can deliver fixtures weighing up to three hundred kilograms within three to seven days door-to-door, albeit at premium freight costs justified for emergency replacements or fast-track construction schedules. Air freight provides middle-ground economics for shipments exceeding three hundred kilograms where express rates become prohibitive, typically delivering within five to ten days airport-to-port or with door delivery arrangements. China-Europe railway connections offer economical alternatives for large shipments with flexible timelines, transporting consolidated cargo volumes exceeding two cubic meters or five hundred kilograms in eighteen to twenty-two days at costs substantially below air freight. Ocean freight remains the most economical option for non-urgent bulk shipments, with fifteen to fifty-day transit times depending on destination and routing, providing dramatic cost savings for large projects where extended lead times accommodate project schedules.

• Protective Packaging for Safe Transportation

Sophisticated Packaging engineering protects Crane Light Fixture investments during the physical abuse of international transportation, ensuring products arrive installation-ready without damage-related delays or replacement costs. The packaging system begins with individual fixture protection using plastic bags providing moisture barrier protection during storage and transport through humid environments or exposed to weather during handling. Each fixture rests on custom-cut foam bases providing secure cushioning and preventing movement within carton boxes during truck, rail, or vessel transport. Top foam layers incorporate dedicated compartments and slots securing mounting brackets, safety chains, hardware packets, and installation documentation, ensuring all components remain organized and protected throughout the logistics chain. Carton boxes employ heavy-duty corrugated construction with reinforced corners, sealed with strong packing tape and secured with plastic straps providing additional security against box opening or crushing during stacking in freight containers or warehouse storage. For customers with specialized requirements or particularly valuable shipments, optional wooden crate solutions provide ultimate protection, particularly valuable for bulk shipments, long-distance ocean transport, or destinations with rough handling concerns. These multi-layer packaging approaches reflect manufacturer understanding that premium products deserve premium protection ensuring customer investment arrives ready for installation rather than requiring damage claims and replacement shipments that delay project completion.

Conclusion

Selecting a top-quality Crane Light Fixture for harsh environments requires balancing technical specifications, environmental durability, and long-term operational value. Superior solutions combine high-efficiency LED technology, robust IP67-rated construction, comprehensive voltage flexibility, and proven thermal management ensuring reliable performance throughout extended operational lifespans. By prioritizing fixtures with extensive certifications, meaningful warranty coverage, and manufacturer support infrastructure, facility managers protect worker safety, optimize operational efficiency, and minimize total ownership costs in demanding industrial applications.

Ready to illuminate your industrial operations with confidence? As a leading China Crane Light Fixture manufacturer and trusted China Crane Light Fixture supplier, Xi'an Razorlux Optoelectronic Technology Co., Ltd. delivers proven lighting solutions combining twenty-seven years of manufacturing excellence, over two hundred patents, and comprehensive global support. Whether you're seeking competitive Crane Light Fixture price quotations, exploring Crane Light Fixture for sale options, or need China Crane Light Fixture wholesale programs, our experienced team provides tailored solutions for marine, industrial, and hazardous location applications worldwide. Contact our specialists at sam@razorlux.com today for custom lighting plans, sample evaluation programs, and expert guidance ensuring your China Crane Light Fixture factory-direct procurement delivers maximum value and performance.

References

1. Occupational Safety and Health Administration (OSHA). "Overhead and Gantry Cranes - 1910.179." U.S. Department of Labor, Industrial Safety Standards for Crane Operations and Workplace Illumination Requirements.

2. Illuminating Engineering Society (IES). "Recommended Practice for Industrial Lighting Design." ANSI/IES RP-7-21, Technical Standards for High-Bay and Crane Lighting Applications in Manufacturing Facilities.

3. International Electrotechnical Commission (IEC). "Degrees of Protection Provided by Enclosures (IP Code)." IEC 60529:2013, International Standards for Ingress Protection Rating and Environmental Sealing Requirements for Industrial Luminaires.

4. National Electrical Manufacturers Association (NEMA). "LED Lighting Systems Performance Testing and Certification Standards." NEMA Standards Publication, Guidelines for LED Fixture Durability, Thermal Management, and Vibration Resistance in Industrial Applications.
