How to Install Outdoor LED Flood Light With Photocell for Maximum Impact?

Picture this: you arrive home after dark only to fumble with keys in pitch-black surroundings, or your commercial property's lighting bill drains your budget month after month. Installing an Outdoor Led Flood Light With Photocell solves both problems by automatically illuminating spaces at dusk and shutting off at dawn, eliminating manual control while slashing energy costs by up to 80%. This comprehensive guide walks you through professional installation techniques, optimal placement strategies, and essential technical specifications to ensure your lighting investment delivers maximum security, efficiency, and long-term performance.

Understanding Outdoor LED Flood Light With Photocell Technology

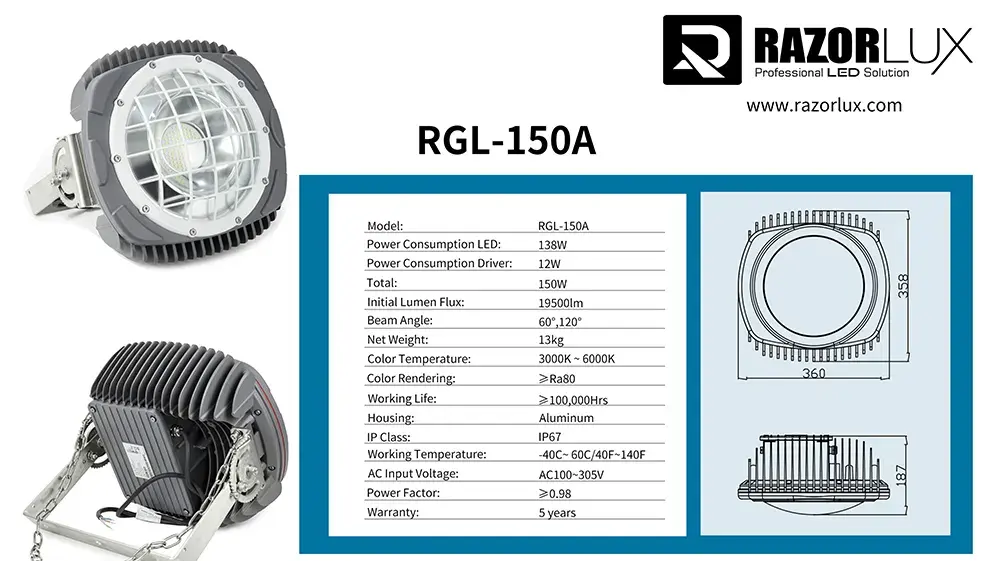

• What Makes Photocell Technology Essential for Modern Lighting?

Photocell sensors represent a breakthrough in automated outdoor illumination, functioning as light-sensitive switches that detect ambient light levels and respond accordingly. An Outdoor Led Flood Light With Photocell contains cadmium sulfide (CdS) cells that increase electrical resistance in daylight and decrease resistance in darkness, automatically triggering the lighting system without human intervention. This intelligent automation prevents energy waste from lights burning unnecessarily during daylight hours while ensuring reliable illumination throughout nighttime periods. The technology has evolved significantly, with modern photocells offering precise sensitivity adjustments, extended operational lifespans exceeding 50,000 hours, and weather-resistant construction rated IP67 for complete protection against dust and water ingress. Industrial-grade Outdoor Led Flood Light With Photocell systems from manufacturers like Razorlux incorporate marine-grade anti-corrosion coatings and robust stainless steel brackets, ensuring reliable performance in demanding environments ranging from coastal installations to extreme temperature zones spanning -40°C to 60°C.

• Key Technical Specifications for Professional Applications

Selecting the appropriate Outdoor Led Flood Light With Photocell requires understanding critical performance parameters that determine installation success and operational efficiency. Power ratings typically range from 100W to 600W, with the Razorlux RGL2-600A model delivering 78,000 lumens at 600W total consumption, replacing traditional HID lamps rated 1200-1500W while achieving dramatic energy savings. Voltage compatibility proves essential, with professional-grade units accepting wide input ranges of 110-480Vac or DC100-800Vdc, eliminating the need for additional adapters and simplifying installation across diverse electrical infrastructures. Color temperature selection between 2700K-6500K allows customization for specific applications, with 5700K providing crisp white light ideal for security and industrial purposes. Beam angle options including 40°, 60°, 120°, and asymmetric 140°x60° configurations enable precise light distribution tailored to architectural requirements. The lamp efficiency of 130LM/W combined with power factors ≥0.98 and THD <10% ensures maximum energy conversion while minimizing electrical system stress, making Outdoor Led Flood Light With Photocell installations both economical and grid-friendly.

• Installation Prerequisites and Safety Requirements

Before commencing any Outdoor Led Flood Light With Photocell installation project, comprehensive safety preparation prevents electrical hazards and ensures code compliance. Professional installations demand licensed electrician involvement, particularly when extending circuits or working with high-voltage systems exceeding 277Vac. Circuit capacity evaluation requires calculating total amperage loads, ensuring existing circuits can accommodate additional fixtures without exceeding 80% of rated capacity—a 15-amp breaker should support maximum 12 amps of continuous load. Complete power disconnection at the main breaker panel, verified with non-contact voltage testers, eliminates shock risks during installation procedures. Local building codes and permit requirements vary significantly by jurisdiction, necessitating thorough research before project commencement. Proper ladder safety, including three-point contact and stable positioning on level surfaces, prevents falls when working at elevation to mount fixtures near rooflines or on high walls where Outdoor Led Flood Light With Photocell units achieve optimal coverage.

Step-by-Step Installation Process for Outdoor LED Flood Light With Photocell

• Location Selection and Mounting Surface Preparation

Strategic placement dramatically influences Outdoor Led Flood Light With Photocell effectiveness, security coverage, and energy efficiency. Optimal mounting locations include building corners elevated 8-12 feet above ground level, providing sweeping illumination across large areas while minimizing obstruction. For security applications, positioning fixtures to eliminate dark zones near entry points, loading docks, and perimeter fencing creates comprehensive coverage without excessive fixture quantities. The photocell sensor itself requires unobstructed access to natural ambient light, positioned away from artificial light sources including the flood light's own output, preventing false triggering that causes erratic on/off cycling. Commercial installations benefit from computer-aided photometric analysis determining exact fixture quantities, placement coordinates, and aiming angles achieving specified illumination levels—typically 5-10 foot-candles for parking areas and 20-30 foot-candles for high-security zones. Mounting surfaces must provide structural integrity supporting fixture weight, with the Razorlux RGL2-600A weighing 17.9kg including stainless steel bracket requiring secure attachment to solid substrates. Wall construction assessment determines appropriate fastener selection, with concrete installations demanding masonry anchors rated for outdoor exposure, while wood framing requires corrosion-resistant lag bolts penetrating structural members rather than sheathing alone. Proper surface preparation including waterproof backing plates and silicone sealant application prevents moisture intrusion that compromises electrical safety and building envelope integrity over extended operational periods.

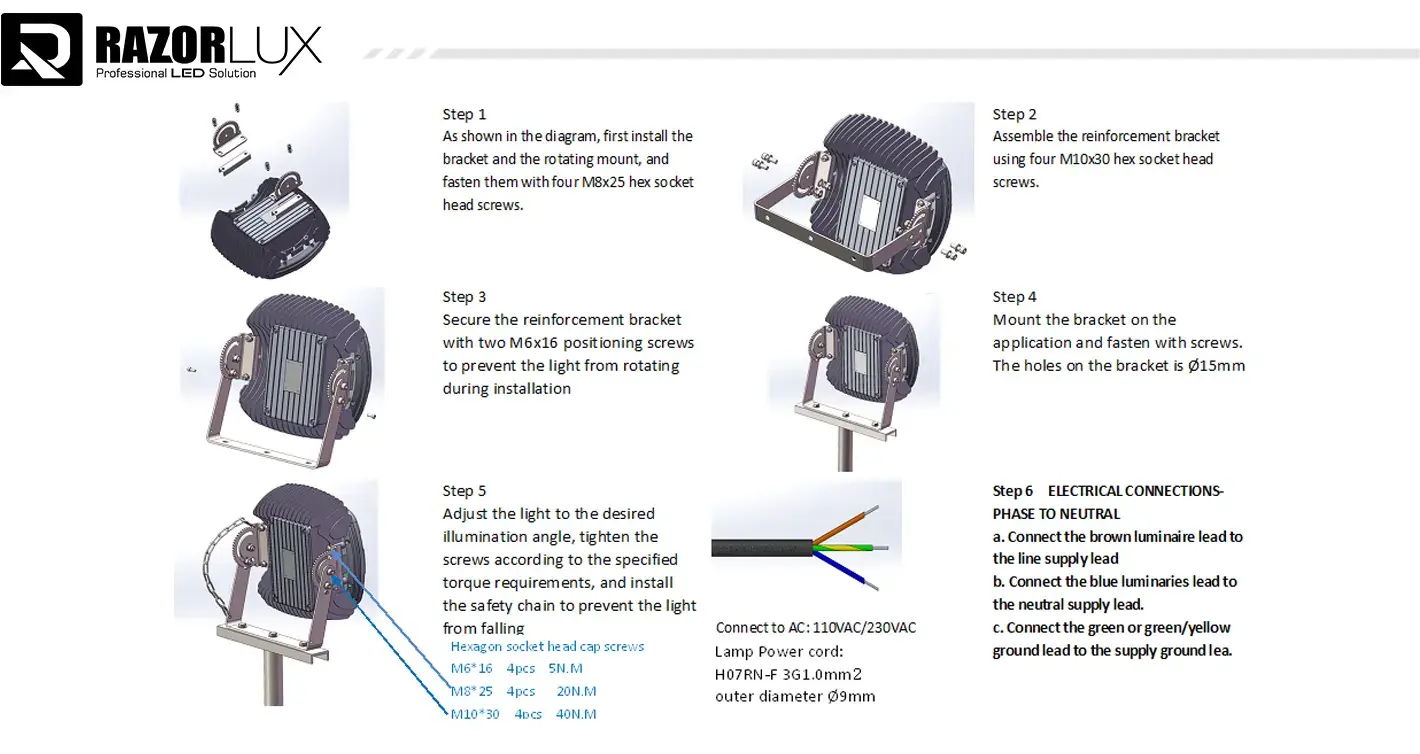

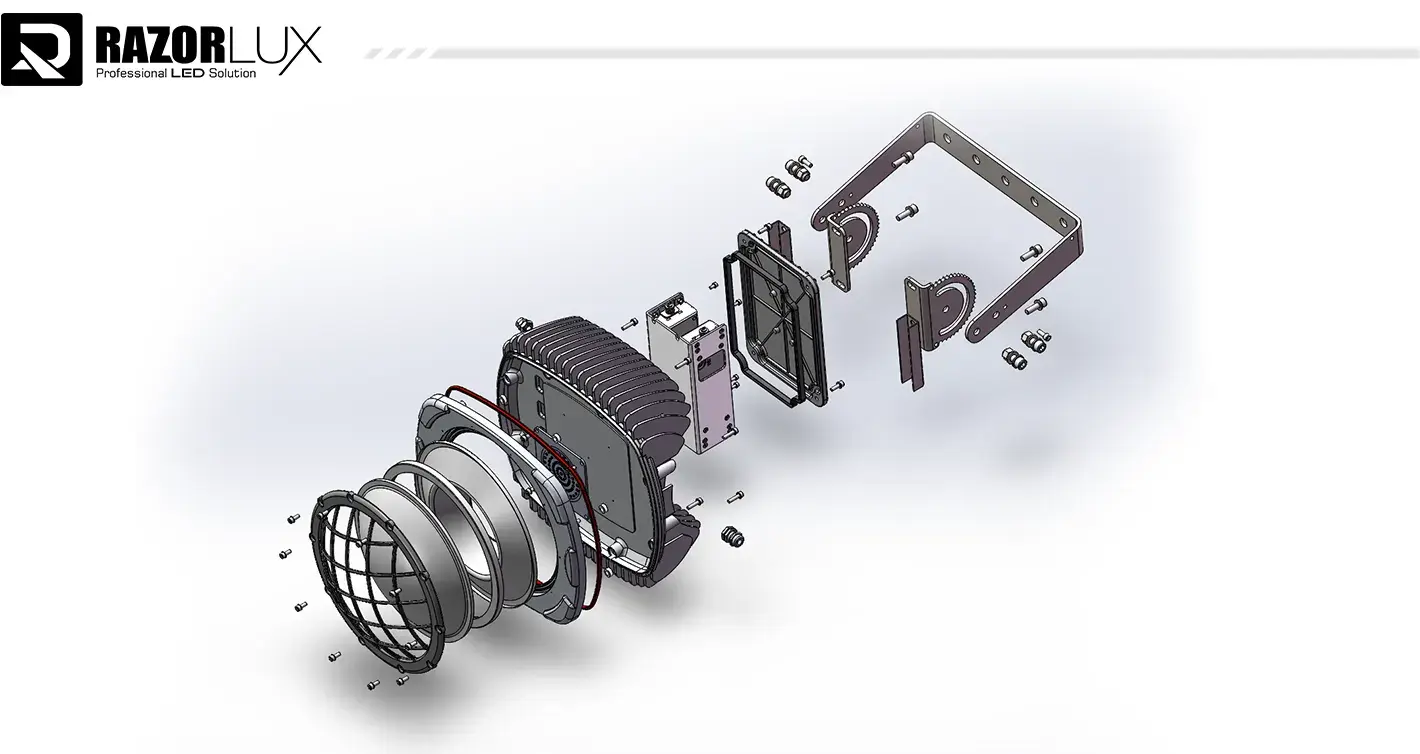

• Electrical Wiring and Connection Procedures

Professional-grade Outdoor Led Flood Light With Photocell installation demands meticulous attention to electrical connection procedures ensuring safety, reliability, and code compliance. Begin by shutting off power at the main breaker panel and verifying complete de-energization using a non-contact voltage tester at the installation location. For new installations, route appropriate gauge wiring from the power source through weather-resistant conduit, with 14-AWG copper wire suitable for 15-amp circuits and 12-AWG required for 20-amp circuits under typical residential conditions. Commercial installations often utilize larger conductors and metal conduit systems meeting more stringent fire safety requirements. The Outdoor Led Flood Light With Photocell typically features color-coded connection terminals: black for line (hot), white for neutral, and green or bare copper for ground connections. Secure wire terminations using approved methods including wire nuts rated for outdoor applications or terminal blocks provided within the fixture's junction box, ensuring connections maintain full contact without exposed conductor. The photocell sensor integrates either internally within the fixture housing or connects via external wiring pigtails, with connection polarity critical for proper operation—reversed connections prevent illumination. After completing all electrical connections, carefully tuck wiring into the junction box avoiding pinching or strain on terminals, then install weatherproof gaskets ensuring the IP67 rating remains intact. Apply dielectric grease to threaded connections and use stainless steel fasteners preventing galvanic corrosion in marine or industrial environments where Outdoor Led Flood Light With Photocell systems face harsh conditions.

• Testing, Adjustment, and Final Commissioning

Comprehensive testing validates proper Outdoor Led Flood Light With Photocell installation before declaring project completion. With power restored at the breaker panel, observe initial startup behavior—quality fixtures complete internal diagnostics and achieve full output within seconds. Photocell functionality testing requires temporarily covering the sensor with opaque material during daylight conditions, which should trigger illumination within 15-45 seconds depending on sensor sensitivity settings. Some advanced Outdoor Led Flood Light With Photocell models feature adjustable photocell sensitivity accessed via small potentiometers, allowing customization of the ambient light threshold triggering activation. Aiming angle adjustment proves critical for maximizing coverage while minimizing light trespass onto neighboring properties or causing glare for motorists. The U-shaped trunnion bracket on professional fixtures enables 180-degree rotation and secure locking at any angle using stainless steel fasteners. Photometric verification using a calibrated light meter confirms designed illumination levels across the coverage area, with measurements taken at grid intersections documenting compliance with project specifications. All exterior penetrations require weatherproofing using high-quality silicone sealant rated for UV exposure and temperature extremes, with sealant beads forming continuous gaskets preventing water migration behind mounting surfaces. Final documentation including photometric measurements, photocell sensitivity settings, and electrical circuit information ensures proper maintenance and troubleshooting capabilities throughout the fixture's operational life exceeding 50,000 hours.

Maximizing Performance and Long-Term Reliability

• Optimal Configuration for Different Applications

Outdoor Led Flood Light With Photocell systems require application-specific configuration maximizing return on investment across diverse commercial, industrial, and security implementations. Parking lot illumination demands uniform distribution achieving 1-5 foot-candles with minimal dark spots, typically accomplished using multiple medium-wattage fixtures with 120-degree beam angles positioned at 30-40 foot pole heights creating overlapping coverage patterns. Building facade lighting emphasizes architectural features using narrow 40-degree beam angles highlighting textures and vertical elements, with 3000K-4000K color temperatures providing warm ambiance for hospitality and retail applications. Industrial warehouses and manufacturing facilities require high-output Outdoor Led Flood Light With Photocell fixtures delivering 20-30 foot-candles at working height, with 5700K color temperature enhancing visibility and worker safety. Security applications benefit from asymmetric 140°x60° beam patterns providing wide horizontal coverage with limited vertical spill, reducing light trespass while maintaining surveillance camera effectiveness. Marine and offshore installations demand specialized configurations including emergency backup power systems enabling 2-hour autonomous operation during grid failures, coupled with enhanced corrosion protection exceeding IP67 standards. The Razorlux RGL2-600A accommodates these diverse requirements through field-configurable options including adjustable wattage settings, multiple color temperature selections, and compatible dimming protocols including 0-10V and DALI systems enabling dynamic lighting control responding to occupancy sensors or time-scheduled programming.

​​​​​​​

• Maintenance Protocols and Troubleshooting Common Issues

Despite robust construction and extended operational lifespans, periodic maintenance ensures Outdoor Led Flood Light With Photocell systems maintain peak performance throughout their service life. Quarterly visual inspections check mounting security, examining bracket fasteners for loosening caused by thermal cycling or vibration from nearby machinery. Photocell sensor surfaces accumulate dirt, dust, and biological growth that interfere with light detection, requiring gentle cleaning using mild soap solutions and soft cloths avoiding abrasive materials damaging protective lenses. Electrical connections within junction boxes should receive annual inspection verifying termination integrity, particularly in high-vibration environments or installations experiencing wide temperature fluctuations causing expansion and contraction. Common operational issues include erratic on/off cycling typically caused by photocell contamination or sensitivity misadjustment, resolved through cleaning and recalibration procedures detailed in manufacturer documentation. Premature photocell failure often results from excessive heat exposure when sensors mount too close to fixture bodies, correctable by relocating sensors using extension cables positioning them in cooler locations. LED driver failures represent another maintenance concern, though quality components like Meanwell power supplies integrated into premium Outdoor Led Flood Light With Photocell fixtures offer exceptional reliability with typical 100,000+ hour MTBFs. Warranty coverage varies by manufacturer, with industry-leading companies like Razorlux providing comprehensive 5-year coverage on LED modules and drivers, plus 10-year housing warranties demonstrating confidence in product durability and construction quality.

• Energy Efficiency Optimization and Cost Analysis

Financial justification for Outdoor Led Flood Light With Photocell upgrades extends beyond simple energy savings, encompassing reduced maintenance labor, extended replacement cycles, and potential utility rebate programs. Comparative analysis demonstrates dramatic operating cost reductions, with a 600W LED system consuming 60% less energy than equivalent 1500W metal halide fixtures while delivering superior illumination quality and color rendering. The photocell automation component contributes additional savings by eliminating human error—forgotten lights left burning during daylight hours waste substantial energy over annual operating periods. Many utility providers offer substantial rebates for commercial LED upgrades, with programs in PECO, PSE&G, and other service territories reducing upfront costs by 50-90%, dramatically accelerating payback periods to under one year in favorable circumstances. Maintenance cost reductions prove equally compelling, as 50,000+ hour LED operational lives eliminate frequent relamping requirements plaguing traditional HID systems needing lamp replacement every 10,000-15,000 hours. Professional Outdoor Led Flood Light With Photocell systems from manufacturers like Razorlux deliver enhanced reliability through advanced thermal management, premium LED binning ensuring consistent color throughout operational life, and ruggedized construction withstanding harsh environmental conditions without premature failure. Total cost of ownership analysis over 5-10 year periods consistently demonstrates LED superiority, with typical installations achieving full payback within 18-36 months while providing improved lighting quality, enhanced safety, and reduced carbon footprints supporting corporate sustainability initiatives.

Conclusion

Successfully installing Outdoor Led Flood Light With Photocell systems transforms property security, operational efficiency, and long-term maintenance costs through intelligent automation and superior LED technology. This comprehensive guide covered essential planning considerations, detailed installation procedures ensuring electrical safety and code compliance, plus optimization strategies maximizing performance across diverse commercial and industrial applications. By following professional installation protocols and selecting quality components featuring IP67 environmental protection, wide voltage compatibility, and proven reliability, property owners achieve decades of maintenance-free illumination automatically responding to ambient conditions without human intervention.

Xi'an Razorlux Optoelectronic Technology Co., Ltd. stands as your trusted partner for premium Outdoor Led Flood Light With Photocell solutions backed by over 20 years of manufacturing excellence and 200+ patents covering LED innovation. Our RGL2-600A series delivers unmatched performance with 600W power, 78,000 lumens output, and comprehensive 5-year warranties ensuring long-term reliability. Whether you need China Outdoor Led Flood Light With Photocell factory-direct pricing, customized configurations for specialized applications, or technical consultation from experienced lighting professionals, Razorlux provides end-to-end solutions from initial design through after-sales support. As a leading China Outdoor Led Flood Light With Photocell supplier and China Outdoor Led Flood Light With Photocell manufacturer, we offer competitive China Outdoor Led Flood Light With Photocell wholesale pricing with Outdoor Led Flood Light With Photocell for sale worldwide, delivering exceptional Outdoor Led Flood Light With Photocell price value through our global distribution network. Contact our expert team at sam@razorlux.com today to discuss your project requirements and discover why industry leaders trust Razorlux for mission-critical lighting installations. Bookmark this guide for future reference when planning your next outdoor lighting upgrade—your brighter, more efficient future begins with the right installation partner.

References

1. Illuminating Engineering Society. (2020). Recommended Practice for Outdoor Environment Lighting. ANSI/IES RP-33-20. Illuminating Engineering Society of North America.

2. Miller, J. & Thompson, R. (2019). LED Lighting Systems: Design, Installation, and Performance Optimization. Industrial Press Inc.

3. National Electrical Manufacturers Association. (2021). Photocontrols for Outdoor Lighting Applications: Performance and Installation Standards. NEMA SSL 7A-2021.

4. U.S. Department of Energy. (2022). Solid-State Lighting Technology Fact Sheet: Outdoor Area and Roadway Lighting. Office of Energy Efficiency & Renewable Energy.
