What is Dimming? An Introduction to Dimming LEDs

Imagine walking into your facility at night, only to find your outdoor lighting is either blindingly bright or completely dark—no in-between. This scenario wastes energy, reduces operational flexibility, and creates uncomfortable working conditions. Dimming technology solves this challenge by allowing precise control over light intensity, and when applied to a Dimmable LED Flood Light, it transforms how industrial and outdoor spaces manage illumination while dramatically cutting energy costs and extending equipment lifespan.

Understanding LED Dimming Technology for Dimmable LED Flood Lights

• What is LED Dimming and Why Does it Matter?

LED dimming refers to the ability to reduce the light output of an LED fixture by controlling the electrical current or power delivered to the light source. Unlike traditional incandescent bulbs that dim simply by reducing voltage, LEDs require sophisticated electronic control because they operate on direct current at specific voltages. A Dimmable LED Flood Light uses specialized drivers that can regulate power delivery while maintaining color consistency and preventing flicker. This technology enables facilities to adjust lighting intensity based on ambient conditions, occupancy levels, or specific task requirements, resulting in substantial energy savings of up to 50-80% when operating at reduced brightness levels.

• The Science Behind Dimming LED Technology

Modern LED dimming operates through two primary mechanisms that control how Dimmable LED Flood Lights deliver illumination. The first method, Pulse Width Modulation, rapidly switches the LED on and off at frequencies invisible to the human eye—typically thousands of times per second—creating the perception of reduced brightness by varying the ratio of on-time to off-time. The second approach, analog dimming or Constant Current Reduction, directly reduces the electrical current flowing through the LED. Dimmable Led Flood Lights Outdoor applications benefit significantly from PWM dimming because it maintains consistent color temperature and quality regardless of brightness level. The LED driver serves as the intelligent intermediary, converting alternating current from the power supply into precisely controlled direct current while responding to dimming signals from control systems.

• Benefits of Implementing Dimmable Lighting Solutions

Installing Dimmable LED Flood Lights delivers multiple operational and financial advantages that traditional fixed-output lighting cannot match. Energy consumption decreases proportionally with dimming levels—a fixture dimmed to 40% brightness consumes approximately 40% of full-power energy—translating directly into lower utility bills and reduced carbon footprint. Extended lifespan represents another critical benefit, as operating LEDs at reduced power generates less heat stress on components, potentially doubling or tripling operational life beyond the typical 50,000-hour rating. Dimmable Led Flood Lights Outdoor installations also enhance safety and security by allowing facilities to maintain appropriate visibility levels without over-illuminating areas unnecessarily. The flexibility to adjust lighting based on time of day, weather conditions, or activity levels creates optimized working environments that improve productivity while minimizing light pollution and environmental impact.

• Common Dimming Control Methods and Protocols

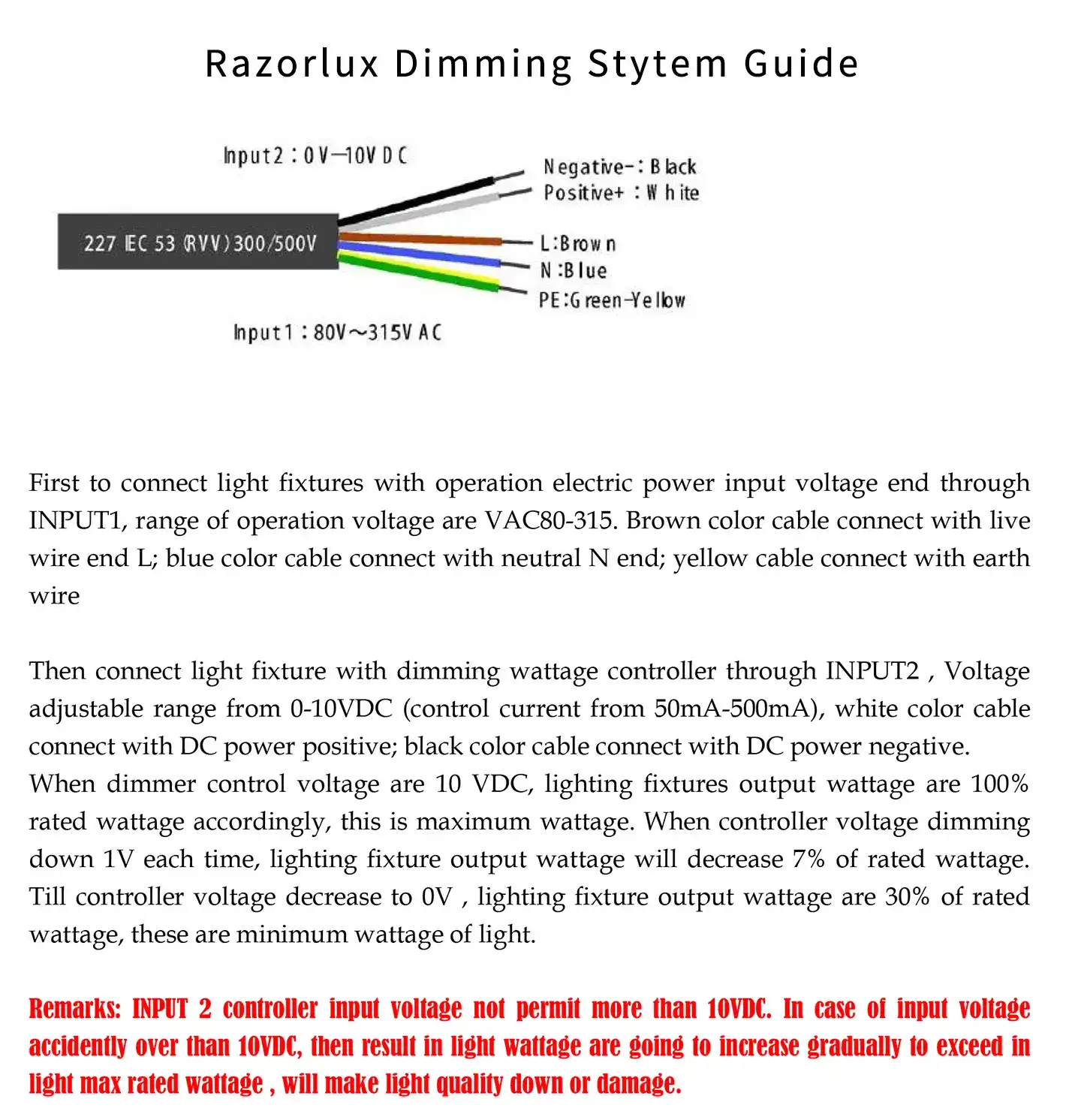

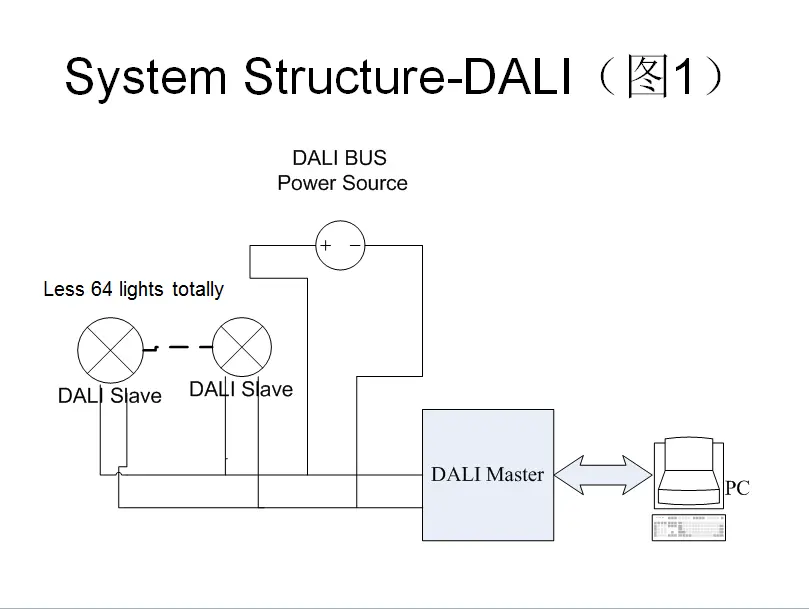

Professional-grade Dimmable LED Flood Light systems typically employ either 0-10V or DALI protocols for industrial and outdoor applications. The 0-10V system uses a simple analog voltage signal where 10 volts equals maximum brightness and 0 volts represents minimum output, making it straightforward to install and maintain with minimal training. DALI offers more sophisticated control, enabling individual addressing of fixtures, feedback communication, and integration with building management systems for automated lighting schedules. Both protocols require compatible LED drivers built into the Dimmable Led Flood Lights Outdoor fixtures, along with appropriate control devices such as wall panels, occupancy sensors, or daylight harvesting systems that adjust artificial lighting based on available natural light.

Selecting the Right Dimmable LED Flood Light for Your Application

• Key Technical Specifications to Consider

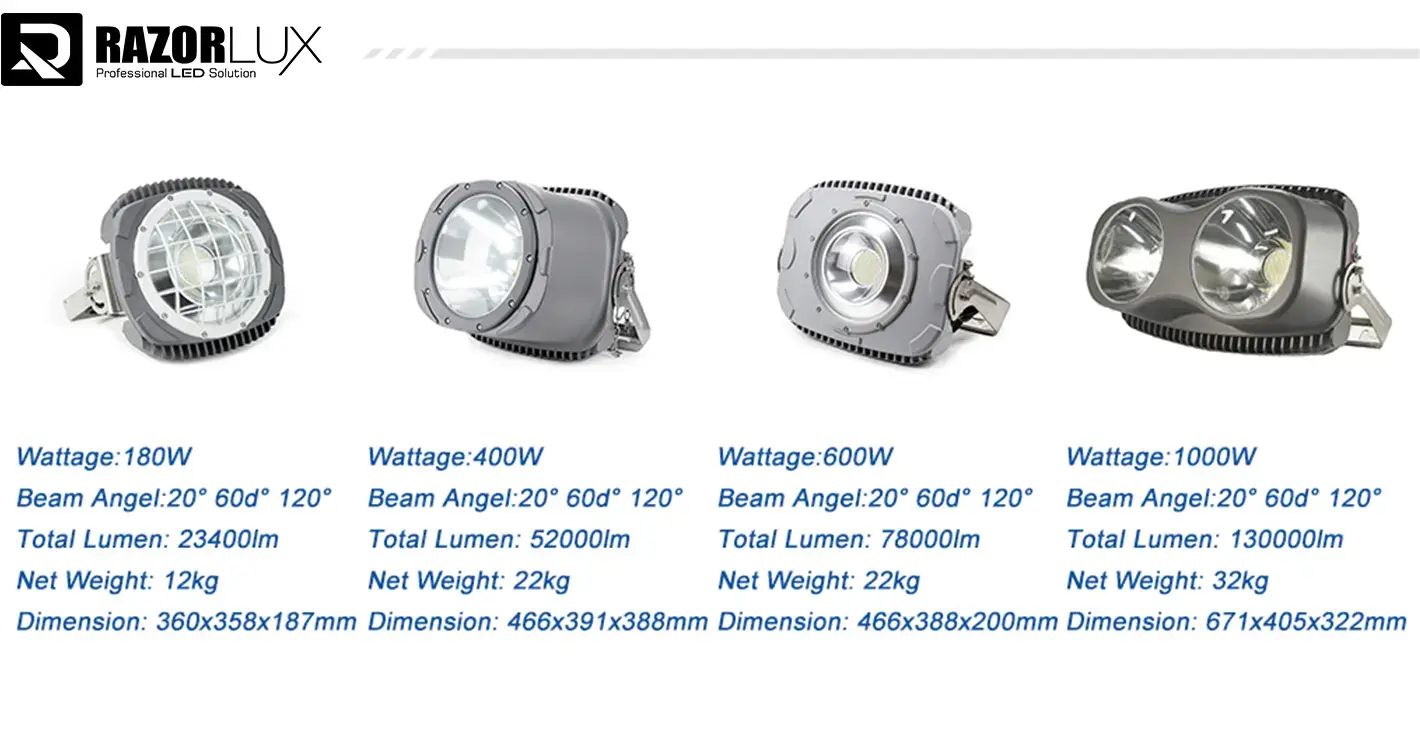

When evaluating Dimmable LED Flood Lights for industrial or outdoor installations, several critical parameters determine performance and suitability for specific environments. Power rating typically ranges from 100W to 1000W, with 400W models like the RGL2-400A offering an optimal balance between illumination intensity and energy efficiency—capable of replacing 800-1000W metal halide fixtures while consuming significantly less power. Input voltage compatibility is essential, particularly for diverse industrial environments; advanced Dimmable Led Flood Lights Outdoor units support wide voltage ranges from AC 110-480V without additional adapters, accommodating varying power infrastructure across different regions and facilities. Color temperature selection between 2700K and 6500K allows customization for specific applications—warmer temperatures create inviting environments for hospitality venues, while cooler temperatures enhance visibility and alertness in manufacturing or security applications. Beam angle options including 40°, 60°, 120°, and asymmetric patterns enable precise light distribution tailored to area geometry and mounting height.

• Durability and Environmental Protection Features

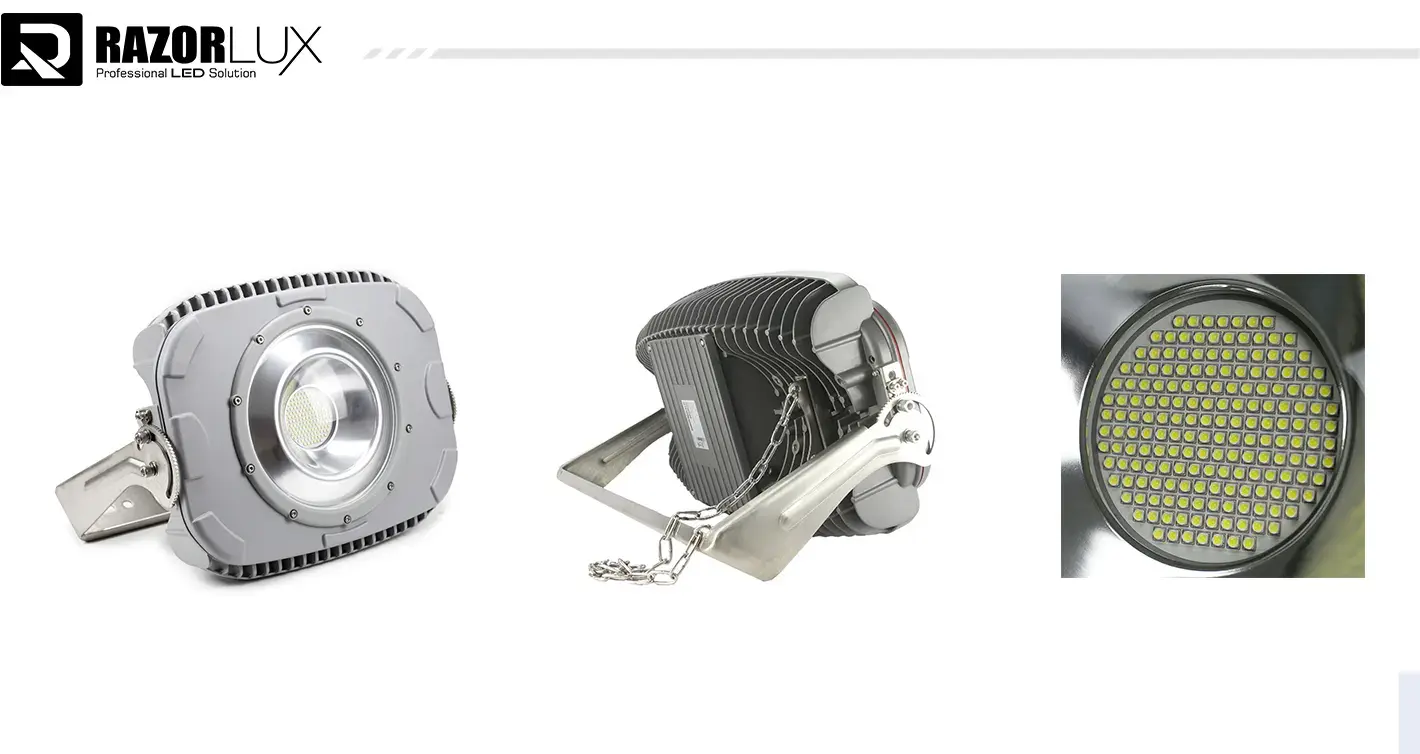

Outdoor and industrial applications demand Dimmable LED Flood Light construction that withstands harsh environmental conditions without performance degradation. IP (Ingress Protection) ratings indicate sealed protection against dust and moisture penetration, with IP67-rated fixtures capable of withstanding temporary immersion in water—critical for marine environments, wash-down areas, or locations subject to heavy precipitation and flooding. IK impact resistance ratings measure mechanical protection, with IK10-rated housings resisting impacts up to 20 joules—equivalent to a 5kg mass dropped from 400mm—protecting against vandalism, accidental contact, and debris in active work zones. Marine-grade anti-corrosion coatings and powder-coated aluminum housings prevent oxidation and deterioration in salt-spray environments, coastal installations, and chemical processing facilities. Operating temperature ranges from -40°C to 60°C ensure reliable performance across extreme climates, from Arctic conditions to desert heat, while maintaining consistent light output and dimming functionality regardless of ambient conditions affecting Dimmable Led Flood Lights Outdoor performance.

• Understanding Dimming Range and Performance

The practical dimming range of a Dimmable LED Flood Light significantly impacts its functional versatility and energy-saving potential in real-world applications. Most quality LED fixtures achieve smooth dimming from 10% to 100% of rated output, though some advanced models extend down to 5% or lower without flicker or dropout—the phenomenon where lights suddenly extinguish before reaching minimum dim level. Dimming linearity describes how uniformly brightness changes correlate with control input; superior Dimmable Led Flood Lights Outdoor products maintain predictable, consistent dimming curves that allow precise adjustment without sudden jumps or dead zones where control changes produce no visible effect. Power factor remains critical during dimmed operation, with high-quality drivers maintaining values above 0.95 even at reduced output levels, ensuring efficient power utilization and compliance with utility requirements. Total Harmonic Distortion below 10% prevents interference with other electrical equipment and ensures clean power consumption across all dimming levels, particularly important in facilities with sensitive electronic equipment or precision manufacturing processes.

• Installation and Control Integration Considerations

Successful Dimmable LED Flood Light installations require careful planning of control architecture based on facility requirements, budget constraints, and future expansion potential. Simple projects may only need basic 0-10V dimming with manual wall-mounted controls, appropriate for small warehouses or limited outdoor areas where uniform dimming of all fixtures suffices. More complex facilities benefit from DALI systems that enable individualized fixture control, automated scheduling based on occupancy or daylight levels, and integration with building management systems for comprehensive energy monitoring. Wireless control solutions eliminate extensive control wiring but require robust network infrastructure and cybersecurity measures. Regardless of control method selected, ensuring compatibility between dimming protocols, LED drivers in the Dimmable Led Flood Lights Outdoor fixtures, and control devices prevents costly incompatibility issues and poor performance such as flicker, noise, or limited dimming range.

Industrial Applications and Real-World Performance

• Sports Facilities and Stadium Lighting

Large-scale sports venues present unique challenges requiring sophisticated Dimmable LED Flood Light solutions that balance performance quality, energy efficiency, and operational flexibility. Professional stadiums require illumination levels exceeding 1500 lux for televised events while maintaining exceptional color rendering (CRI >80) to accurately reproduce colors for broadcast cameras and spectators. Dimmable Led Flood Lights Outdoor systems allow venues to operate at reduced intensity during practice sessions, maintenance periods, or non-broadcast events, potentially reducing energy consumption by 60-70% compared to full-power operation. The instant-on capability of LED technology eliminates warm-up periods required by traditional metal halide systems, enabling facilities to quickly adjust lighting for different event types or emergency situations. Advanced dimming control synchronized with event management systems can create dynamic lighting effects, pre-game ambiance control, and post-event dimming sequences that enhance fan experience while optimizing energy utilization.

• Parking Structures and Security Applications

Multi-level parking facilities and outdoor lots require reliable illumination that adapts to varying occupancy patterns throughout 24-hour cycles while maintaining safety and security. Dimmable LED Flood Lights integrated with occupancy sensors or time-based controls can operate at 30-40% capacity during low-traffic overnight hours, substantially reducing operational costs while maintaining adequate visibility for navigation and surveillance. Motion-activated dimming allows fixtures to increase to full brightness when vehicles or pedestrians approach, enhancing security through active illumination while conserving energy during idle periods. High-quality Dimmable Led Flood Lights Outdoor products with IP67 protection and IK10 impact resistance withstand the demanding parking environment including vehicle exhaust, temperature extremes, vibration from traffic, and potential vandalism. Uniform light distribution without harsh shadows improves surveillance camera performance, while adjustable color temperatures between 4000K-5000K optimize visibility and facial recognition for security personnel monitoring CCTV systems.

• Industrial Manufacturing and Warehouse Operations

Modern manufacturing and distribution facilities require adaptable lighting systems that support diverse operational requirements across different zones, shifts, and activity levels. Dimmable LED Flood Light installations allow facilities to maintain higher illumination in active production areas while dimming unused sections, creating substantial energy savings in large buildings where only portions may be operational during certain shifts. Task-specific lighting levels can be programmed for different manufacturing processes—higher intensity for precision assembly work, moderate levels for general material handling, and reduced output in automated areas with minimal human presence. The flicker-free dimming performance of quality Dimmable Led Flood Lights Outdoor systems prevents visual fatigue and eyestrain during extended shifts, improving worker comfort and productivity. Integration with facility management systems enables automated adjustment based on shift schedules, natural daylight contribution through skylights, or emergency protocols that instantly bring all lighting to full output during evacuations or crisis situations.

• Architectural and Facade Illumination

Architectural lighting for building exteriors, monuments, and landmarks demands precise control over intensity, color temperature, and distribution to create dramatic visual effects while managing energy consumption and light pollution. Dimmable LED Flood Lights enable sophisticated programming of lighting scenes that change throughout evening hours—brighter during peak pedestrian traffic periods, dimmed during late-night hours to minimize sky glow and energy waste. Color temperature adjustment capabilities in advanced fixtures allow transformation of building appearance from warm, inviting tones during early evening to cooler, more dramatic lighting later at night. Narrow beam angles (40°-60°) create focused accent lighting that highlights architectural features without spillover, while wider distributions (120°-140°) provide uniform facade washing. Dimmable Led Flood Lights Outdoor systems with DALI control enable complex programming synchronized with seasonal changes, special events, or holidays, creating dynamic visual presentations that enhance urban environments while maintaining responsibility for energy conservation and ecological lighting practices that minimize disruption to wildlife and residential neighbors.

Technical Advantages of Professional-Grade Dimmable Flood Lights

• Advanced Driver Technology and Power Management

The LED driver represents the critical intelligence within any Dimmable LED Flood Light, determining overall system performance, reliability, and dimming quality. Professional-grade fixtures utilize high-efficiency drivers from reputable manufacturers like Meanwell that achieve power conversion efficiency exceeding 94%, minimizing energy waste as heat and reducing thermal stress on components. Active power factor correction maintains values above 0.98 across the entire dimming range, ensuring efficient power utilization and compliance with utility power quality requirements—particularly important for large installations where poor power factor results in demand charges and reduced electrical system capacity. Advanced thermal management integrates driver thermal performance with LED heat sink design, enabling reliable operation at full output even in extreme ambient temperatures from -40°C to 60°C without derating. Sophisticated Dimmable Led Flood Lights Outdoor products incorporate overvoltage protection, surge suppression, and thermal shutdown mechanisms that protect the investment against electrical transients, lightning-induced surges, and thermal runaway conditions that could cause premature failure in lesser-quality products.

• Optical Design and Light Distribution Control

Precise optical engineering differentiates professional Dimmable LED Flood Lights from commodity products, ensuring efficient light utilization, uniform distribution, and appropriate beam characteristics for specific applications. High-purity optical-grade lenses or tempered glass diffusers with anti-reflective coatings maximize light transmission while protecting LED arrays from environmental contamination—dust accumulation, moisture ingress, or insect infiltration that degrades output over time. Multiple beam angle options including narrow spot (40°), medium flood (60°), wide flood (120°), and asymmetric distributions (140°x60°) enable optimal matching to mounting height, area geometry, and photometric requirements without wasting light beyond the target zone. Advanced products achieve luminous efficacy exceeding 130 lumens per watt, delivering 52,000 lumens from a 400W fixture—equivalent illumination to 800-1000W metal halide systems while consuming less than half the energy. Consistent color rendering with CRI values of Ra75 or higher (Ra80-Ra90 available on request) ensures accurate color perception critical for security identification, quality inspection, or retail applications where Dimmable Led Flood Lights Outdoor performance impacts operational effectiveness.

• Longevity and Total Cost of Ownership

The extended operational lifespan of quality Dimmable LED Flood Lights dramatically reduces total cost of ownership compared to traditional lighting technologies through decreased maintenance requirements and lamp replacement expenses. Professional-grade LED modules achieve L70 lifespans exceeding 50,000 hours (maintaining 70% of initial output after 50,000 operating hours), equivalent to 5.7 years of continuous 24/7 operation or over 13 years at 10 hours daily. When operated with dimming protocols that reduce average output to 60-70% of maximum, thermal stress decreases proportionally, potentially extending effective lifespan to 75,000-100,000 hours—approaching 20 years in typical commercial applications. Comprehensive warranty coverage including 5-year protection on LED modules, drivers, and housing components demonstrates manufacturer confidence in product durability while providing financial protection against premature failure. The reduced maintenance burden becomes particularly significant in locations with difficult access—high-bay mounting positions, offshore platforms, or remote facilities where lamp replacement requires lift equipment, production shutdowns, or costly service calls that far exceed the material cost of replacement components for Dimmable Led Flood Lights Outdoor installations.

• Compliance and Certification Standards

Professional-grade Dimmable LED Flood Light products meet rigorous international standards that verify safety, performance, electromagnetic compatibility, and environmental responsibility. UL (Underwriters Laboratories) certification confirms compliance with North American electrical safety standards including proper insulation, temperature limits, and protection against shock hazards critical for insurance requirements and regulatory approval. CE marking indicates conformity with European Union directives covering electromagnetic compatibility, low-voltage safety, and RoHS restrictions on hazardous substances—essential for international projects serving global markets. Marine certifications from agencies like RMRS (Russian Maritime Register of Shipping) verify suitability for harsh maritime environments with specialized requirements for corrosion resistance, vibration tolerance, and salt-spray exposure. Energy efficiency certifications such as DLC (DesignLights Consortium) listing qualify fixtures for utility rebate programs that can offset 20-50% of project costs, significantly improving return on investment for Dimmable Led Flood Lights Outdoor installations. ISO 9001 certification of manufacturing processes ensures consistent quality control, traceability, and continuous improvement methodologies that maintain product reliability across production batches.

Conclusion

Understanding LED dimming technology empowers facility managers and specifiers to leverage the full potential of modern lighting systems that deliver exceptional performance, energy savings, and operational flexibility. Dimmable LED Flood Lights represent the convergence of advanced semiconductor technology, sophisticated power electronics, and intelligent control protocols that transform how industrial and outdoor spaces manage illumination while dramatically reducing operational costs and environmental impact.

Ready to experience the benefits of professional-grade dimmable lighting? Xi'an Razorlux Optoelectronic Technology Co., Ltd. stands as your trusted China Dimmable LED Flood Light manufacturer with over two decades of LED innovation excellence. As a leading China Dimmable LED Flood Light supplier, we deliver cutting-edge solutions backed by 200+ patents and comprehensive certifications including UL, CE, RMRS, and ISO 9001. Our China Dimmable LED Flood Light factory produces IP67-rated fixtures with marine-grade construction, 5-year warranties, and advanced dimming capabilities tailored for demanding applications. Discover competitive Dimmable LED Flood Light price options and explore our extensive Dimmable LED Flood Light for sale catalog designed for sports facilities, parking structures, industrial environments, and architectural projects worldwide. Partner with a premier China Dimmable LED Flood Light wholesale provider offering custom sampling, technical support, OEM/ODM services, and reliable global logistics. Contact our expert team today at sam@razorlux.com to discuss your project requirements and receive personalized recommendations that optimize performance, efficiency, and long-term value for your lighting investment.

References

1. National Electrical Manufacturers Association (NEMA), "Technical Paper: Dimming LED Lighting Systems - Control Protocols and Application Guidelines," authored by NEMA Lighting Systems Division Technical Committee.

2. Illuminating Engineering Society (IES), "Recommended Practice for Dimming Control of LED Light Sources," compiled by IES Color Committee and Lighting Controls Council.

3. U.S. Department of Energy, "LED Dimming: What You Need to Know," Energy Efficiency and Renewable Energy Office, Building Technologies Program.

4. International Commission on Illumination (CIE), "Technical Report 205: Review of Lighting Control Protocols and Systems for Use with LED Light Sources," authored by CIE Technical Committee TC 3-51.
